LVT-1 AMPHIBIOUS VEHICLE (Alligator)

LVT-1 AMPHIBIOUS VEHICLE (Alligator)

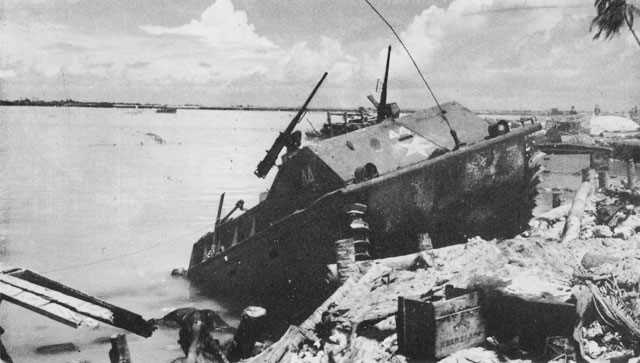

Image: LVT-1 (USMC)
YearJuly 1941
Vehicle Type[@type]
Origin & Designer[@designer]
Numbers Produced2.125
Crew3 (Commander, Driver & Assitant Driver + 24 x Passengers)
Main Armament2 x .30 cal M1819A4 Machine Guns
Main Armament[@sponson_traverse]
Elevation[@elevation]
Turret Traverse[@turret_traverse]
Gun Traverse[@gun_traverse]
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun Sight6.55m
Secondary Armament[@secondary_armament]
Smoke Discharger[@smoke_discharger]
Ammunition Carried6000 x .30 cal
Height2.48m
Width3.0m
Length6.55m
Combat Weight14.700 kg
Ground Clearance0.46m
Fording DepthFloats
Trench Crossing1.63m
Obstacle Clearance0.46m
Climbing Ability31°
RadioSCR 210
ArmourNone
EngineHercules WXLC-3 (Petrol)
Transmission3 Forward & 1 Reverse
Maximum Road Range150 miles (240 km)
Maximum Cross Country Range[@maximum_cross_country_range]
Maximum Water Range60 miles (100 km)
Maximum Road Speed20 mph (30 kph)
Maximum Cross Country Speed12 mph (19 kph)
Maximum Water Speed6.1 mph (9.8 kph)
Variants[@variants]
NotesInitially developed as a rescue vehicle in the Florida swamps, the Alligator attracted the attention of the US navy and these were dubbed “Landing Vehicle Tracked”. The first LVTs were developed as a supply crafts, the LVT-1 was soon used to deliver troops to the beach and could carry up to 18 men. They were armed with a mixture of .30 cal and .50 cal Machines Guns which gave them some punch, but the vehicle itself had no armoured plating and was found to be unreliable over hard ground.
