Year | April 1942 |
Vehicle Type | [@type] |
Origin & Designer | [@designer] |
Numbers Produced | 450 |
Crew | 3 + 24 Troops |
Main Armament | 1 x .50 cal M2HB Heavy Machine Gun (Skate Rail) |
Main Armament | [@sponson_traverse] |
Elevation | [@elevation] |
Turret Traverse | [@turret_traverse] |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | 7.95m |
Secondary Armament | 3 x .30 cal M1919A4 Machine Guns (Pivots with Shields) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 420 x .50 cal & 6000 x .30 cal |
Height | 2.50m |
Width | 3.25m |
Length | 7.95m |
Combat Weight | 14.900 kg |
Ground Clearance | 0.46m |
Fording Depth | Floats |
Trench Crossing | 1.50m |
Obstacle Clearance | 0.91m |
Climbing Ability | 31° |
Radio | SCR 508 |
Armour | Upper Hull Front (Cab): 13mm. Lower Hull Front: 6.4mm. Upper Hull Sides (Cab): 6.4mm. Lower Hull Sides: 6.4mm. Upper Hull Rear (Cab): 6.4mm. Lower Hull Rear: 6.4mm. Hull Top: 6.4mm. Hull Bottom: None. Machine Gun Shields: 6.4mm |
Engine | Continental W-670-9A (Petrol) |
Transmission | 5 Forward & 1 Reverse |
Maximum Road Range | 150 miles (240 km) |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | 50 miles (80 km) |
Maximum Road Speed | 20 mph (30 kph) |
Maximum Cross Country Speed | 15 mph (24 kph) |
Maximum Water Speed | 7 mph (12 kph) |
Variants | [@variants] |

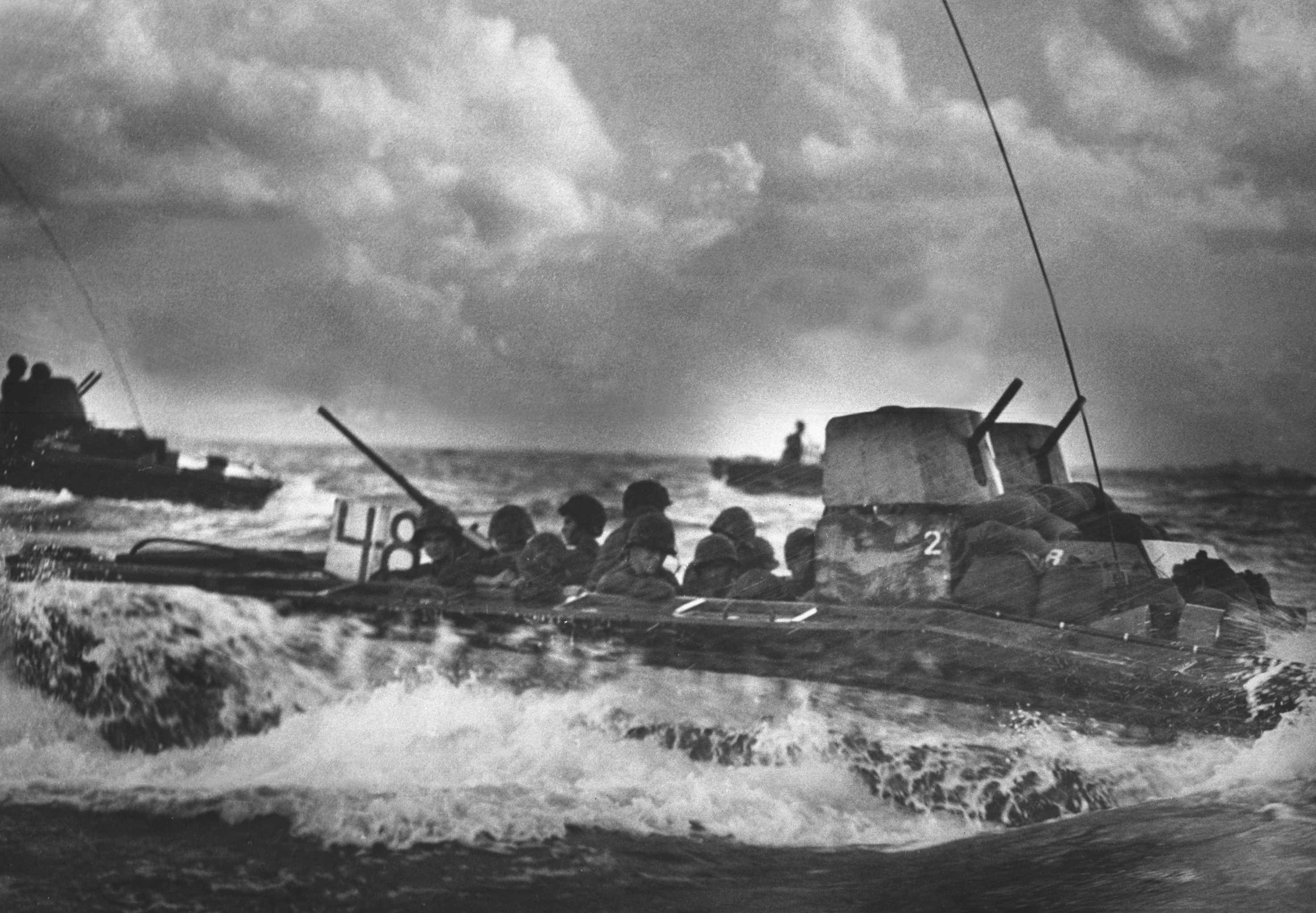

Notes | Armoured version of the LVT-2 developed for Infantry transport with an armoured cab and hull. It was armed with one .50 cal heavy machine gun mounted on a skate rail with and two .30 cal machines guns on pivot mounted with armoured shields. Despite the extra weight it could still carry 18 fully armed troops at a similar speed as the LVT-2. |
