Year | 1942 (M51) |
Weapon Type | [@type] |
Origin & Designer | [@designer] |
Numbers Produced | ? (M51) 10 |
Crew | Sergeant/Squad Leader. Corporal/Gunner.
|
Calibre | .50 Cal (12.7x99 M2 U.S. Ball) |
Elevation | -10° to +90° |
Traverse | 360° |
Breech | [@breech] |
Recoil | [@recoil] |
Gun Sight | M18 |
Gun Mount | Maxson M45 |
Carriage | [@carriage] |
Trailers | M17 (M51) M20 (M55) |
Gun Shield | [@gun_shield] |
Armoured Plate | 6.4mm |
Barrel Length | 1.14m |
Overall Length | 1.95m. |
Width | 2.10m |
Height | 1.43m |
Weight | M51: 3.128 kg M55: 1.338 kg |
Round Weight | 117.4 g |
Muzzle Velocity | 856 m/s |
Feed | [@feed] |
Magazine Capacity | 800 x .50 (in four 200 x Round Drum Magazines) |
Practical Rate of Fire | [@practical_rate_of_fire] |
Rate of Fire | [@rate_of_fire] |
Maximum Rate of Fire | 2.200 rpm |
Maximum Ceiling | 4.570m |
Maximum Ground Range | 6.770m |
Maximum Range | [@maximum_range] |
Armour Penetration | 12mm @ 500m @ 30° |
Traction | 2 ½ ton Truck (M51) 3/4 Truck (M55) |
Variants | [@variants] |
Notes | The US army saw how effective the quad .50 cal machine guns were when mounted on the M45 mount they requested a mobile version that could be towed truck. The M51 was composed of the M17 trailer and the M45 multiple .50 cal. Mount.

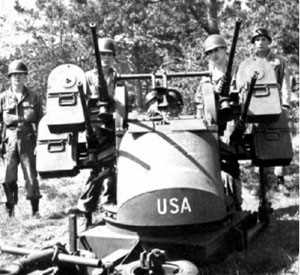

The US airborne requested a lighter version able to be transported by glider and this version was called the M55. This was the combination of the M45 mounted on a lighter M20 Trailer which could be pulled by jeep.
Quad .50s were usually kept under AAA Group command and issued at Divisional level. |
