Year | March 1944 |
Vehicle Type | [@type] |
Origin & Designer | [@designer] |
Numbers Produced | 109 |
Crew | 6 |
Armament | 1 x .30 cal M2HB Heavy Machine Gun |
Ammunition Carried | 600 x .50 cal |
Pay Load | [@pay_load] |
Towed Load | [@towed_load] |
Weight | 27.216 kg |
Height | 2.21m |
Width | 2.71m |
Length | 5.63m |
Ground Clearance | 0.43m |
Fording Depth | 1.0m |
Obstacle Clearance | 0.61m |
Climbing Ability | 31° |
Radio | [@radio] |
Armour | Hull Gun Mantlet: 89mm. Upper Hull Front: 51mm. Lower Hull Front: 51mm. Upper Hull Sides: 38mm. Lower Hull Sides: 38mm. Hull Rear: 38mm. Hull Top: 25mm. Hull Bottom: 13mm.
|
Engine | Continental R975 C1 (Petrol) |
Transmission | 5 Forward & 1 Reverse |
Maximum Road Range | 119 miles (193 km) |
Maximum Cross Country Range | 87 miles (140 km) |
Maximum Road Speed | 21 mph (34 kph) |
Maximum Road Speed + Trailer | [@maximum_road_speed_trailer] |
Maximum Cross Country Speed | 16 mph (25 kph) |
Maximum Road Towing Speed | [@maximum_road_towing_speed] |
Variants | [@variants] |

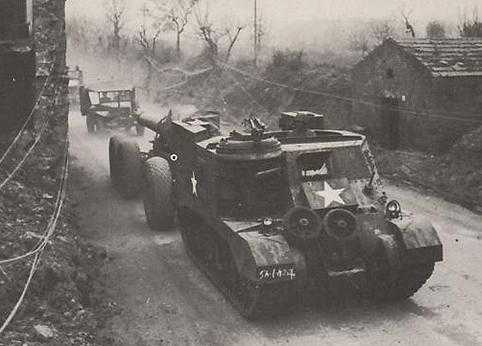

Notes | The M33 was based on the chassis of the M3 medium tank. It first served in Italy and later in a small extent in northern Europe. And was replaced by the M6 tractor. It was used to tow the 8in M1 Gun and 240mm M1 Howitzer. |
