Year | October 1942 |
Vehicle Type | [@type] |
Origin & Designer | [@designer] |
Numbers Produced | 2.687 |
Crew | 5 (Commander, Gunner, Loader, Hull Gunner & Driver) |
Main Armament | 1 x 37mm L/53 M6 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -7° to +60° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | 2.36m |
Secondary Armament | 1 x .30 Cal M1919A4 Machine Gun (Coaxial). 1 x .30 Cal M1919A4 Machine Gun (Bow). 1 x .30 Cal M1919A4 Machine Gun (AA Mount).
|
Smoke Discharger | 1 x 2in M3 Smoke Mortar |
Ammunition Carried | 103 x 37mm & 5.250 x .30 Cal + 18 x Smoke Rounds |
Height | 2.36m |
Width | 2.69m |
Length | 5.49m |
Combat Weight | 13.928 kg |
Ground Clearance | 0.38m |
Fording Depth | 0.81m |
Trench Crossing | 0.46m |
Obstacle Clearance | 0.53m |
Climbing Ability | 57° |
Radio | No 19 Set |
Armour | Hull Front: 22mm. Hull Sides: 19mm. Hull Rear: 10mm. Hull Top: 13mm. Hull Bottom: 6.4mm. Gun Mantlet: 31mm. Turret Front: 31mm. Turret Sides: 31mm. Turret Rear: 31mm. Turret Top: 13mm.
|
Engine | Twin GMC 270 (Petrol) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 24 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 89 kph |
Maximum Cross Country Speed | 50 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | Mk. IICS: Year: . Total: 30. Main Armament: 3in Mk. I Howitzer. Mk. III: Crusader III Turret with 6 pdr Gun (1945). Staghound AA: Year: October 1943. Total: 789. Crew: 3 (Commander/Gunner, Loader & Driver). Armament: 2 x .50 Cal M2 Heavy Machine Guns. Elevation: -10° to +80°. Turret Traverse: 360° (Powered). Ammunition: 2.610 x .50 Cal. Armour: Gun Mantle: 25mm. Turret Front: 44mm. Turret Sides: 31mm. Turret Rear: 31mm. Turret Top: 13mm.
|

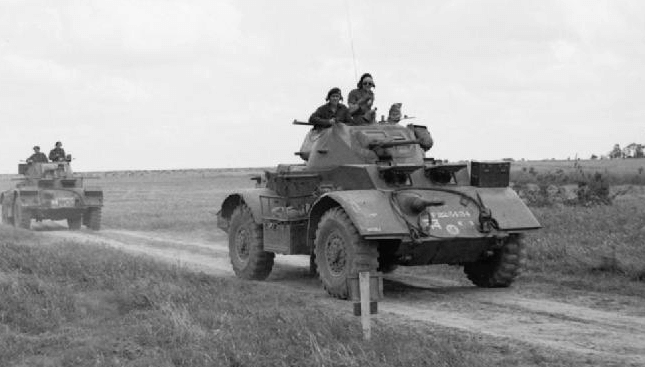

Notes | In 1941 the British required a new medium to heavy armoured car to equip units serving in North Africa. Around the same time the US ordnance board were also issuing orders for a similar vehicle. After trials in the US the British were offered the T17E1 which they re-named the Staghound. It had a 37mm M6 gun with a coaxial mounted .30 cal Browning machine and another mounted in the hull. It carried a crew of five. The Staghound served with the British, Canadian, New Zealand, Indians, Free Polish and Belgian forces in both Italy and Northwest Europe. |
