ORDNANCE QF 25 PDR Mk. I (SHORT)

ORDNANCE QF 25 PDR Mk. I (SHORT)

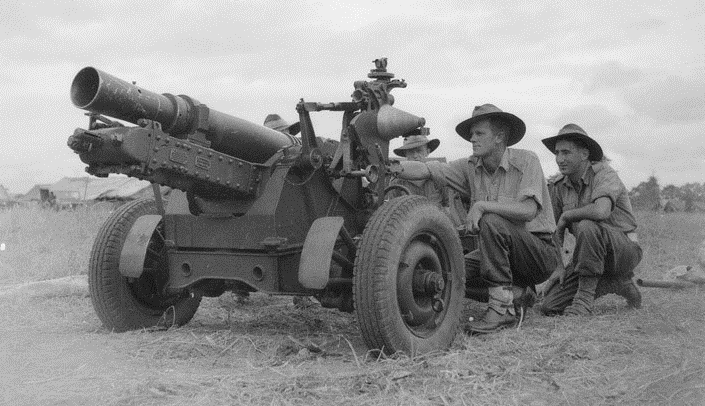

Image: Ordnance QF “Short” 25 pdr (AWM)
Year1943
Weapon TypeLight Pack Gun/Howitzer
Origin & DesignerAustralia/Maribyrnong
Numbers Produced213
Crew6
Calibre87.6mm (87x292R)
Elevation-5° to +40°
Traverse
BreechVertical Sliding Block
RecoilHydropneumatic
Gun SightNo. 29
Gun Mount[@gun_mounts]
CarriageBox Trail
Trailers[@trailers]
Gun Shield[@gun_shield]
Armoured Plate[@armoured_plate]
Barrel Length1.260mm (L/14)
Overall Length4.57m
Width[@width]
Height[@height]
WeightWeight in Action: 1.315 kg
Round Weight11.33 kg
Muzzle Velocity375 m/s
Feed[@feed]
Magazine Capacity[@magazine_capacity]
Practical Rate of Fire[@practical_rate_of_fire]
Rate of Fire4 r.p.m.
Maximum Rate of Fire[@maximum_rate_of_fire]
Maximum Ceiling[@maximum_ceiling]
Maximum Ground Range[@maximum_ground_range]
Maximum Range9.300m
Armour Penetration[@armour_penetration]
TractionMotorised (Jeep) or Pack (13 Loads)
Variants[@variants]
NotesThe short 25 pounder was a developed by the Australian army to produce a gun which could be broken down into parts for air transport or towed by a jeep. The terrain in which Australian forces were fighting across was not suited to heavy artillery and most heavy weapons had to keep coastal areas due to the narrow tracks through the jungle and forest’s. The gun had a shorter barrel and a lighter trail which reduced the range. The new gun first reached the troops in 1943 and equipped one battery in every three in field artillery regiments.
