Year | 1934 |
Vehicle Type | Light Tankette |
Origin & Designer | Czechoslovakia/CKD |
Numbers Produced | 70 |
Crew | 2 (Commander/Gunner & Driver/Gunner) |
Main Armament | 2 x 7.92mm ZB Vz.26 Machine Guns (Ball Mounts, Hull Front) |
Main Armament | [@sponson_traverse] |
Elevation | [@elevation] |
Turret Traverse | [@turret_traverse] |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | Optical |
Secondary Armament | [@secondary_armament] |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 2.600 x 7.92mm |
Height | 1.45m |
Width | 1.75m |
Length | 2.70m |
Combat Weight | 2.500 kg |
Ground Clearance | 0.23m |
Fording Depth | 0.40m |
Trench Crossing | 1.20m |
Obstacle Clearance | 0.50m |
Climbing Ability | 45° |
Radio | [@radio] |
Armour | Hull Front: 12mm Hull Sides: 8mm Hull Rear: 8mm Hull Top: 6mm Hull Bottom: 6mm Gun Mantle: 12mm |
Engine | Praga AH (Petrol) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 100 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 35 kph |
Maximum Cross Country Speed | 15 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

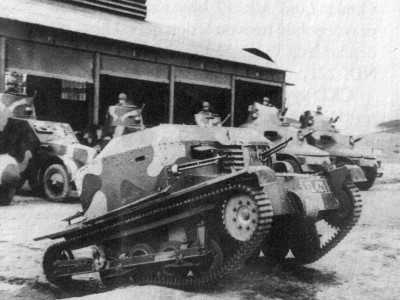

Notes | The TC Vz.33 (Tančík Vzor 33) was a light tankette designed by the Czech firm ČKD. It had a crew of two and was armed with two machine guns which were located in the hull front. One of the machine guns was ball mounted and fired the commander and the second was fixed and was fired by the driver. They were issued to independent platoons and used in conjunction with other units to guard the Czech border. |
