Year | 1934 |
Vehicle Type | Light Tank |
Origin & Designer | Czechoslovakia/CKD |
Numbers Produced | 50 |
Crew | 3 (Commander/Gunner, Radio Operator/Machine Gunner & Driver) |
Main Armament | 1 x 37mm L/40 UV Vz.34 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -10° to +25° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | TFZ |
Secondary Armament | 2 x 7.92mm ZB Vz.35 Machine Guns (Coaxial & Bow) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 60 x 37mm & 2000 x 7.92mm |
Height | 2.22m |
Width | 2.10m |
Length | 4.60m |
Combat Weight | 7.625 kg |
Ground Clearance | 0.35m |
Fording Depth | 0.80m |
Trench Crossing | 2.0m |
Obstacle Clearance | 0.80m |
Climbing Ability | 29° |
Radio | Vz.35 |
Armour | Hull Front: 15mm Hull Sides: 15mm Hull Rear: 15mm Hull Top: 8mm Hull Bottom: 8mm Gun Mantle: 15mm Turret Front: 15mm Turret Sides: 15mm Turret Rear: 15mm Turret Top: 8mm |
Engine | Praga SV (Petrol) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 160 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 36 kph |
Maximum Cross Country Speed | 15 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

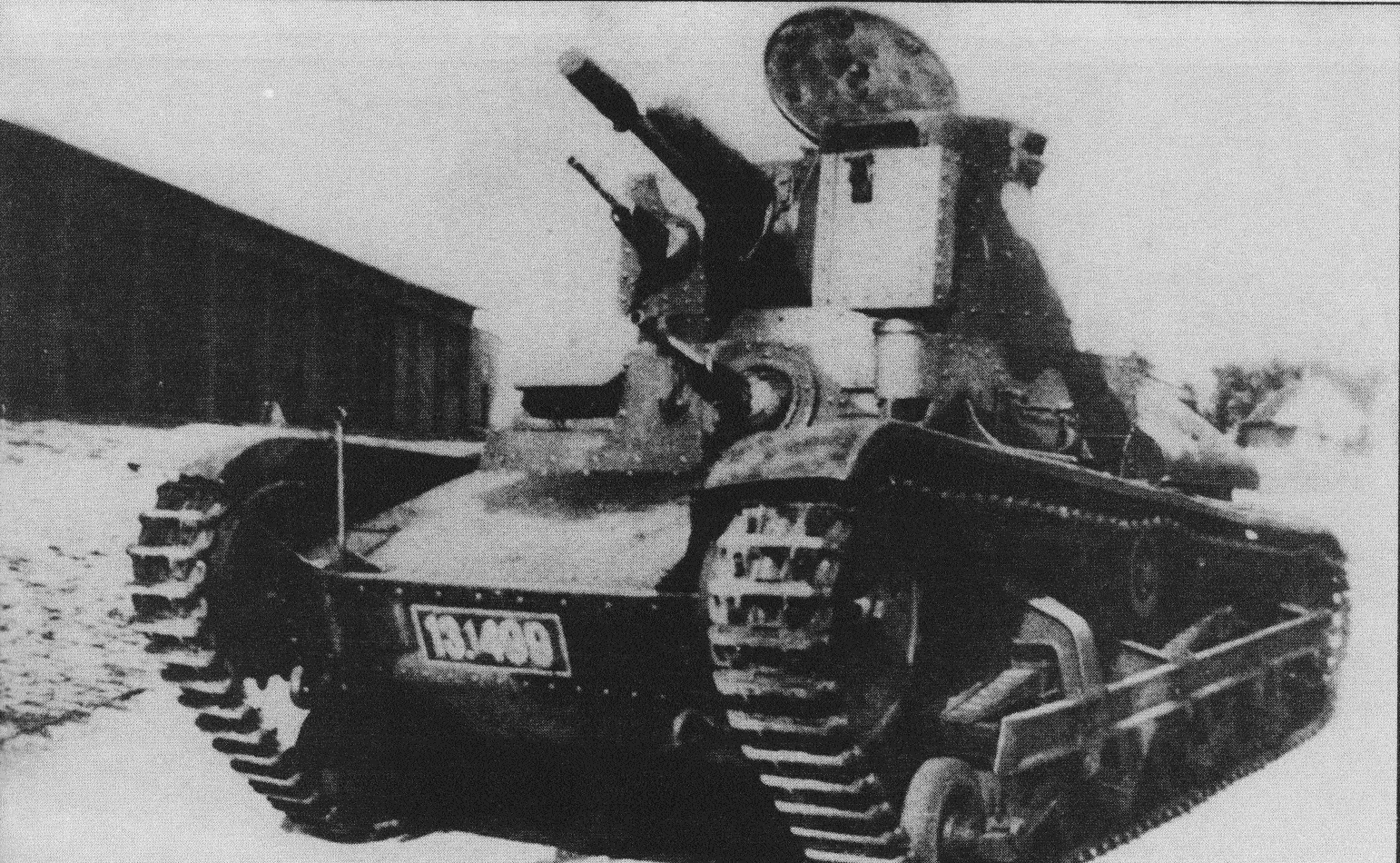

Notes | The LT Vz.34 (Lehký Tank Vzor 34) was a light tank designed by the Czech firm ČKD. It mounted a 37mm gun in a fully revolving turret plus two machine guns. It was thinly armoured, which was a cause for concern as this only gave protection against small arms and shell splinters. They were supposed to be concentrated in a single armoured regiment but this was cut short by the German annexation. |
