Year | 1930 |
Weapon Type | Light Field Howitzer |
Origin & Designer | Czechoslovakia/Skoda |
Numbers Produced | 160 |
Crew | 10 |
Calibre | 100mm (100x132R) |
Elevation | -8° to +80° |
Traverse | 7.5° |
Breech | Horizontal Sliding Block |
Recoil | Hydropneumatic |
Gun Sight | Vz.8/14 Telescopic |
Gun Mount | [@gun_mounts] |
Carriage | Split Trail |
Trailers | [@trailers] |
Gun Shield | 4.2mm |
Armoured Plate | [@armoured_plate] |
Barrel Length | 2.500mm (L/25) |
Overall Length | [@length] |
Width | 1.40m |
Height | 1.62m |
Weight | Weight in Traction: 3.077 kg Weight in Action: 1.798 kg |
Round Weight | 16 kg (HE) |
Muzzle Velocity | 430 m/s |
Feed | [@feed] |
Magazine Capacity | [@magazine_capacity] |
Practical Rate of Fire | [@practical_rate_of_fire] |
Rate of Fire | 6 r.p.m. |
Maximum Rate of Fire | [@maximum_rate_of_fire] |
Maximum Ceiling | [@maximum_ceiling] |
Maximum Ground Range | [@maximum_ground_range] |
Maximum Range | 10.600m |
Armour Penetration | [@armour_penetration] |
Traction | Horse Drawn (six Horses) & Motorised (Medium Truck) |
Variants | [@variants] |

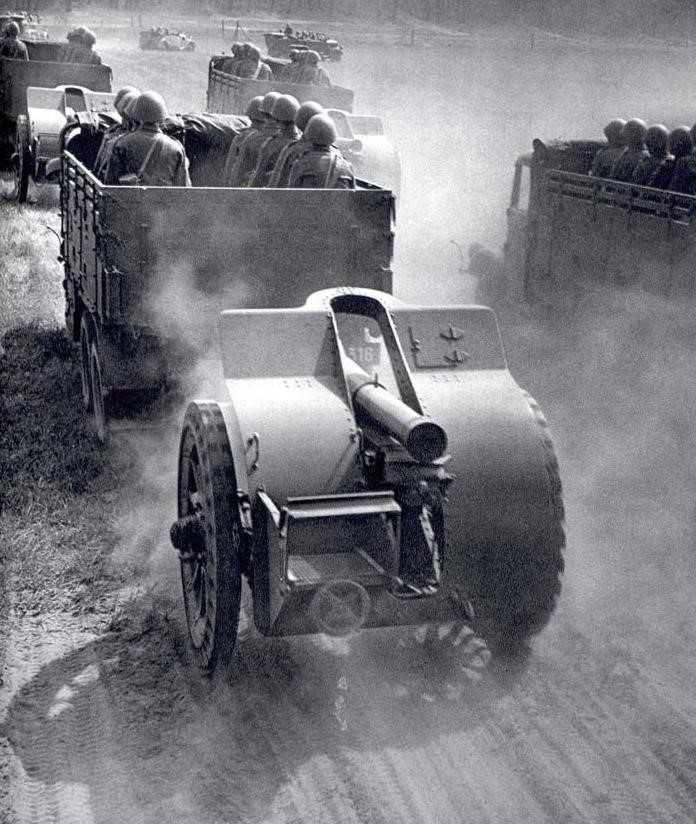

Notes | The LH Vz.30 (Lehký Houfnice Vzor 30) was a light divisional howitzer which was designed and built by Skoda. It was developed to replace the vintage LH Vz.14/19 as the standard divisional howitzer but this was never fully achieved. It shared the same carriage as the 8cm LK Vz.30 and could be broken down into three sections. It was issued to artillery regiments at divisional level. |
