Year | 1935 |
Weapon Type | Medium Field Gun |
Origin & Designer | Czechoslovakia/Skoda |
Numbers Produced | 106 |
Crew | 9 |
Calibre | 105mm |
Elevation | -6° to +42° |
Traverse | 50° |
Breech | Horizontal Sliding Wedge |
Recoil | Hydropneumatic |
Gun Sight | Telescopic |
Gun Mount | [@gun_mounts] |
Carriage | Split Trail |
Trailers | [@trailers] |
Gun Shield | 4.7mm |
Armoured Plate | [@armoured_plate] |
Barrel Length | 4.400mm (L/42) |
Overall Length | 7.12m |
Width | 2.40m |
Height | 1.70m |
Weight | Weight in Traction: 4.600 kg Weight in Action: 4.200 kg |
Round Weight | 18 kg (HE) |
Muzzle Velocity | 730 m/s |
Feed | [@feed] |
Magazine Capacity | [@magazine_capacity] |
Practical Rate of Fire | [@practical_rate_of_fire] |
Rate of Fire | 8 r.p.m. |
Maximum Rate of Fire | [@maximum_rate_of_fire] |
Maximum Ceiling | [@maximum_ceiling] |
Maximum Ground Range | [@maximum_ground_range] |
Maximum Range | 18.100m |
Armour Penetration | [@armour_penetration] |
Traction | Motorised (Tatra Vz.29 Truck) |
Variants | [@variants] |

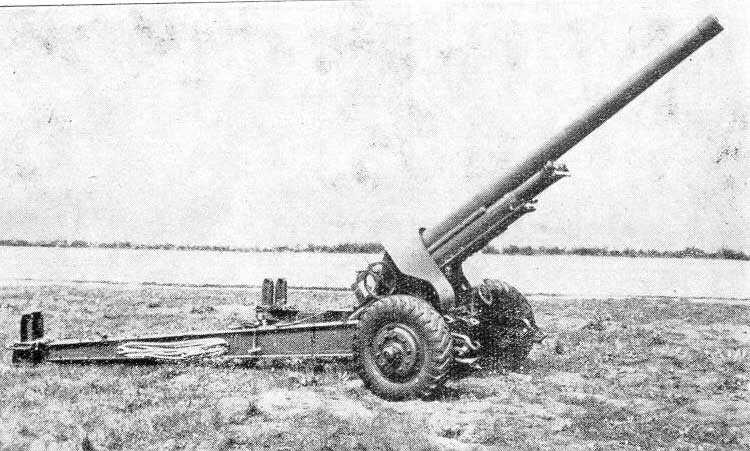

Notes | The HK Vz.35 (Hrubý Kanón Vzor 35) was a heavy gun and was designed and built by Skoda. It was one of the best pieces available to the Czech army and was developed to replace the older models that were still in use. It was issued to heavy artillery regiments and were all designed for motorised traction. |
