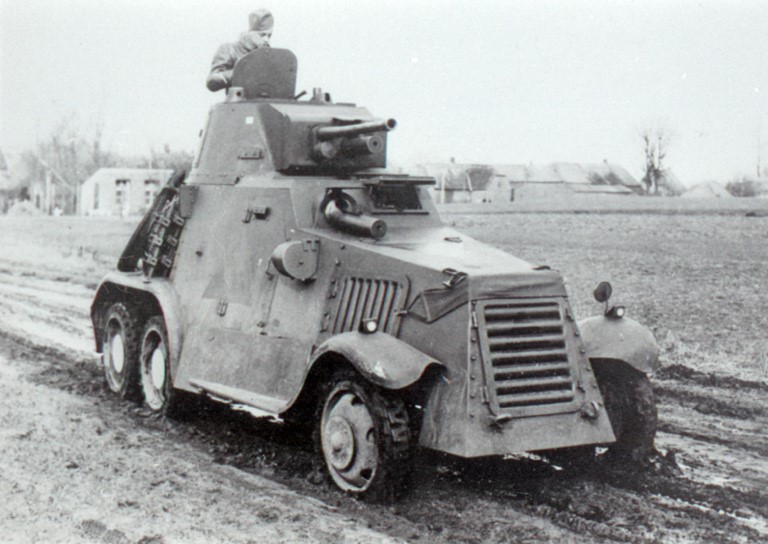

Image: M36 (War Over Holland)
Vehicle TypeHeavy 6x4 Armoured Car
Origin & DesignerSweden/Landsverk
Numbers Produced12
Crew5 (Commander/Loader, Gunner, Hull Gunner & 2 x Drivers)
Main Armament1 x 37mm L/45 M.39 Gun
Main Armament[@sponson_traverse]
Elevation-9° to +23°
Turret Traverse360° (Manual)
Gun Traverse[@gun_traverse]
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightTelescopic
Secondary Armament3 x 7.92mm M20 No1 & 2 Machine Guns (Coaxial, Bow & Rear Hull)
Smoke Discharger[@smoke_discharger]
Ammunition Carried100 x 37mm & 4000 & 7.92mm
Combat Weight0.65m
Ground Clearance0.25m
Fording Depth0.65m
Trench Crossing[@trench_crossing]
Obstacle Clearance[@obstacle_clearance]
Climbing Ability24°
ArmourHull Front: 7mm
Hull Sides: 7mm
Hull Rear: 7mm
Hull Top: 5mm
Hull Bottom: 5mm
Gun Mantle: 9mm
Turret Front: 9mm
Turret Sides: 9mm
Turret Rear: 9mm
Turret Top: 9mm
EngineDaimler-Benz (Petrol)
Transmission3 Forward & 1 Reverse
Maximum Road Range250 km
Maximum Cross Country Range[@maximum_cross_country_range]
Maximum Water Range[@maximum_water_range]
Maximum Road Speed70 kph
30 kph (Reverse)
Maximum Cross Country Speed[@maximum_cross_country_speed]
Maximum Water Speed[@maximum_water_speed]
NotesThe M36 was a medium armoured car which originated from Sweden and was built by Landsverk as the L181. It was armed with a 37mm canon in a fully revolving turret and three machine guns. The Dutch purchased twelve of these vehicles from Landsverk in 1936 and these were issued to the 1st armoured car squadron along with a single command version of the M38.
