Year | 1938 |
Vehicle Type | Heavy 6x4 Armoured Car |
Origin & Designer | Sweden/Landsverk |
Numbers Produced | 12 |
Crew | 4 (Commander/Loader, Gunner, Hull Gunner & 2 x Drivers) |
Main Armament | 1 x 37mm L/45 M.39 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -9° to +23° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | Telescopic |
Secondary Armament | 3 x 7.92mm M20 No.1 & 2 Machine Guns (Coaxial, Bow & Rear Hull) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 300 x 20mm & 4000 x 7.92mm |
Height | 2.28m |
Width | 2.24m |
Length | 5.87m |
Combat Weight | 7000 kg |
Ground Clearance | 0.25m |
Fording Depth | 0.65m |
Trench Crossing | [@trench_crossing] |
Obstacle Clearance | 0.35m |
Climbing Ability | 24° |
Radio | [@radio] |
Armour | Hull Front: 7mm Hull Sides: 7mm Hull Rear: 7mm Hull Top: 5mm Hull Bottom: 5mm Gun Mantle: 9mm Turret Front: 9mm Turret Sides: 9mm Turret Rear: 9mm Turret Top: 5mm
|
Engine | Büssing NAG (Petrol) |
Transmission | 3 Forward & 1 Reverse |
Maximum Road Range | 250 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 65 kph |
Maximum Cross Country Speed | 70 kph 32 kph (Reverse)
|
Maximum Water Speed | [@maximum_water_speed] |
Variants | M38 Command Pantserwagen Total: 2 Type: Command Vehicle Crew: 5 Armament: 3 x 7.92mm M20 Machine Guns
|

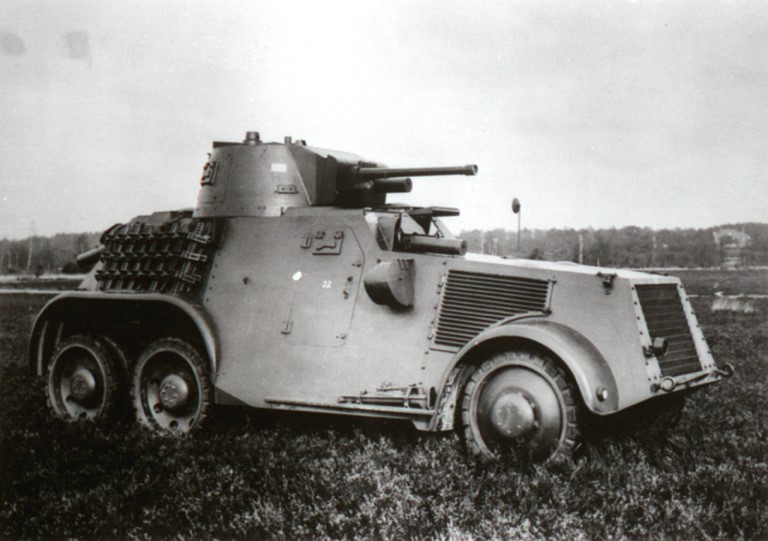

Notes | The M38 was a medium armoured car which originated from Sweden and was built by Landsverk as the L180. It was armed with a 37mm canon in a fully revolving turret and three machine guns. The Dutch purchased fourteen of these vehicles from Landsverk in 1938 and two of these arrived with no main gun so were issued as command vehicles. The M38 were issued to the 2nd armoured car squadron which also contained one command version. |
