Year | 1926 |
Vehicle Type | Light 4x2 Armoured Car |
Origin & Designer | Britain-Estonia/Crossley-Arsenal |
Numbers Produced | 13 |
Crew | 4 (Commander, Gunner & Two Drivers) |
Main Armament | Either 1 x 37mm L/21 SA-18 Gun (Four models) 1 x 7.7mm Madsen Machine Gun (Nine models)
|
Main Armament | [@sponson_traverse] |
Elevation | [@elevation] |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | [@gun_sight] |
Secondary Armament | [@secondary_armament] |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | [@ammunition_carried] |
Height | 2.43m |
Width | 1.80m |
Length | 4.87m |
Combat Weight | 5.500 kg |
Ground Clearance | [@ground_clearance] |
Fording Depth | [@fording_depth] |
Trench Crossing | [@trench_crossing] |
Obstacle Clearance | [@obstacle_clearance] |
Climbing Ability | [@climbing_ability] |
Radio | [@radio] |
Armour | Hull Front: 7mm Hull Sides: 7mm Hull Rear: 7mm Hull Top: 5mm Hull Bottom: 3mm Gun Mantle: 7mm Turret Front: 7mm Turret Sides: 7mm Turret Rear: 7mm Turret Top: 5mm
|
Engine | Crossley Motors 45 hp (Petrol) |
Transmission | 3 Forward & 1 Reverse |
Maximum Road Range | 77 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 60 kph |
Maximum Cross Country Speed | [@maximum_cross_country_speed] |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

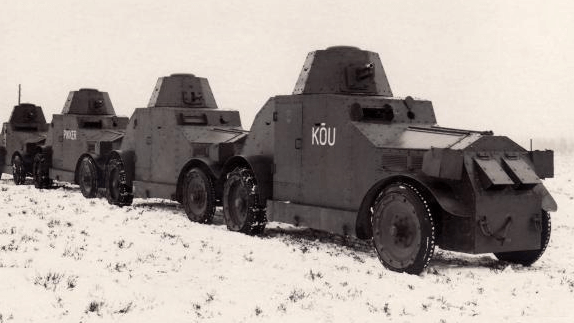

Notes | The M1927/28 was an armoured car which was built on the Chassis of the Crossley truck. Thirteen were produced and six were armed with French 37mm guns and seven with machine guns. They were manufactured over a two year period between 1927 and 1928 and issued to armoured companies located in a single armoured regiment. |
