AMC 35 (Auto Mitrailleuse De Combat)

AMC 35 (Auto Mitrailleuse De Combat)

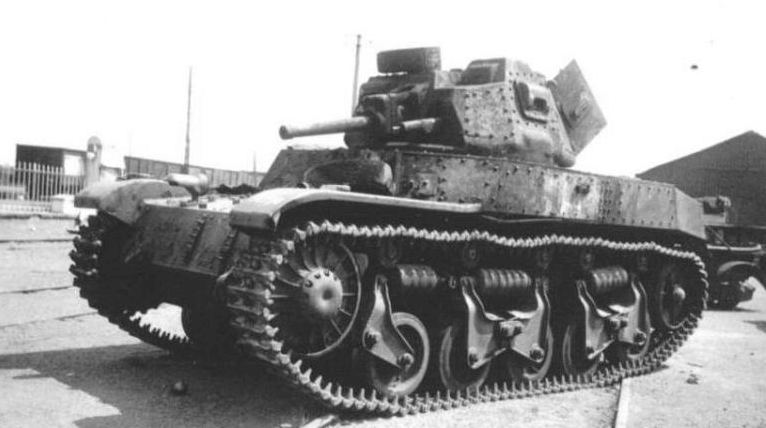

Image: AMC 35 (Tanks.2ru)
Vehicle TypeLight Cavalry Tank
Origin & DesignerFrance/Renault
Numbers Produced57 (47 in French Service and 10 to the Belgian Arm
Crew3 (Commander, Gunner & Driver)
Main Armament1 x 47mm L/32 SA-35 Gun
Main Armament[@sponson_traverse]
Elevation-18° to +18°
Turret Traverse360° (Powered)
Gun Traverse[@gun_traverse]
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightL.724
Secondary Armament1 x 7.5mm MAC Modèle 1931 Machine Gun (Coaxial)
Smoke Discharger[@smoke_discharger]
Ammunition Carried120 x 47mm + 6.750 x 7.5mm
Combat Weight14.500 kg
Ground Clearance0.40m
Fording Depth1.0m
Trench Crossing2.20m
Obstacle Clearance0.40m
Climbing Ability45°
ArmourHull Front: 25mm
Hull Sides: 12mm
Hull Rear: 5mm
Hull Top: 5mm
Hull Bottom: 10mm
Gun Mantlet: 25mm
Turret Front: 25mm
Turret Sides: 20mm
Turret Rear: 15mm
Turret Top: 5mm
EngineRenault 4-Cyl (Petrol)
Transmission4 Forward & 1 Reverse
Maximum Road Range160 km
Maximum Cross Country Range[@maximum_cross_country_range]
Maximum Water Range[@maximum_water_range]
Maximum Road Speed42 kph
Maximum Cross Country Speed30 kph
Maximum Water Speed[@maximum_water_speed]
NotesA medium tank designed to serve in cavalry units, 12 sold to Belgium.
