| Year | 1933 |
| Vehicle Type | Heavy Six Wheeled Armoured Radio Car |
| Origin & Designer | Germany/Daimler-Benz, Margirus & Büssing-NAG |
| Numbers Produced | 123 (Both Sd.Kfz 231 & 232) |
| Crew | 4 (Commander, Gunner, Radio Operator-Driver & Driver) |
| Main Armament | 1 x 20mm L/55 KwK 30 Gun |
| Main Armament | [@sponson_traverse] |
| Elevation | -12° to +20° |
| Turret Traverse | 360° (Manual) |
| Gun Traverse | [@gun_traverse] |
| Gun Mount | [@gun_mounts] |
| Maximum Range | [@maximum_range] |
| Armour Penetration | [@armour_penetration] |
| Gun Sight | [@gun_sight] |
| Secondary Armament | 1 x 7.92mm MG13/34 (Coaxial) |
| Smoke Discharger | [@smoke_discharger] |
| Ammunition Carried | 200 x 20mm + 1.500 x 7.92mm |
| Height | 2.25m |
| Width | 1.82m |
| Length | 5.57m |
| Combat Weight | 6.150 kg |
| Ground Clearance | 0.25m |
| Fording Depth | 0.60m |
| Trench Crossing | 1.81m |
| Obstacle Clearance | [@obstacle_clearance] |
| Climbing Ability | 20° |
| Radio | FuG-11 & FuG Spr ‘a’ |
| Armour | Hull Front: 14.5mm Hull Sides: 8mm Hull Rear: 8mm Hull Top: 5mm Hull Bottom: 5mm Gun Mantle: 8mm Turret: 14.5mm Turret Sides: 8mm Turret Rear: 8mm Turret Top: 6mm |
| Engine | Either Bussing-Nag, Daimler-Benz M09 or Magirus S88 (Petrol) |
| Transmission | 4 Forward & 1 Reverse |
| Maximum Road Range | 300 km |
| Maximum Cross Country Range | [@maximum_cross_country_range] |
| Maximum Water Range | [@maximum_water_range] |
| Maximum Road Speed | 70 kph |
| Maximum Cross Country Speed | 31 kph |
| Maximum Water Speed | [@maximum_water_speed] |
| Variants | [@variants] |

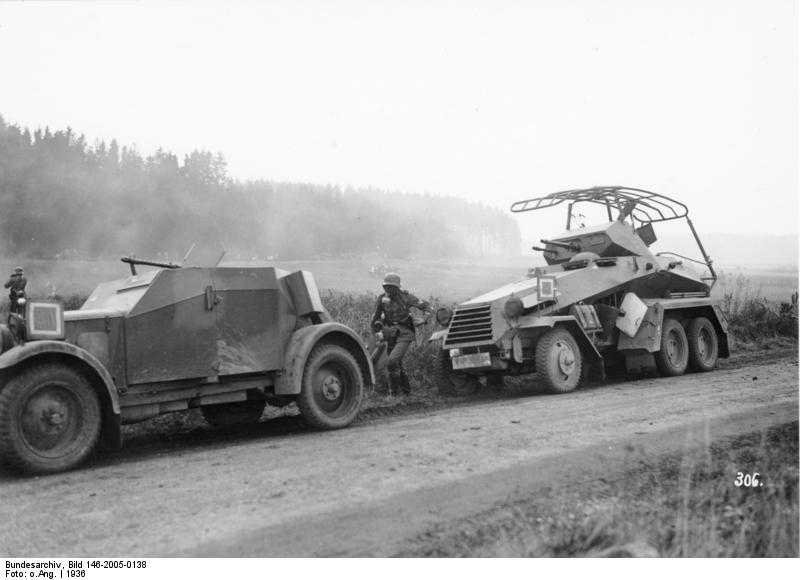

| Notes | This was the radio version of the 231 and served as a long range signal vehicle. |
