Year | April 1942 |
Vehicle Type | Heavy Infantry Assault Tank |
Origin & Designer | Germany/Krauss-Maffei |
Numbers Produced | 30 |
Crew | 2 (Commander/Gunner & Driver) |
Main Armament | 2 x 7.92mm MG34s |
Main Armament | [@sponson_traverse] |
Elevation | -10° to +20° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | TZF-8 |
Secondary Armament | [@secondary_armament] |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 2.250 x 7.92mm |
Height | 2.05m |
Width | 2.64m |
Length | 4.38m |
Combat Weight | 21.000 kg |
Ground Clearance | 0.29m |
Fording Depth | 0.58m |
Trench Crossing | 1.50m |
Obstacle Clearance | 0.33m |
Climbing Ability | 30° |
Radio | FuG-5 |
Armour | Hull Front: 80mm Hull Sides: 50mm Hull Rear: 50mm Hull Top: 25mm Hull Bottom: 25mm Gun Mantle: 80mm Turret Front: 80mm Turret Sides: 50mm Turret Rear: 50mm Turret Top: 25mm
|
Engine | Maybach HL 45P (Petrol) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 140 km |
Maximum Cross Country Range | 110 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 25 kph |
Maximum Cross Country Speed | 14 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

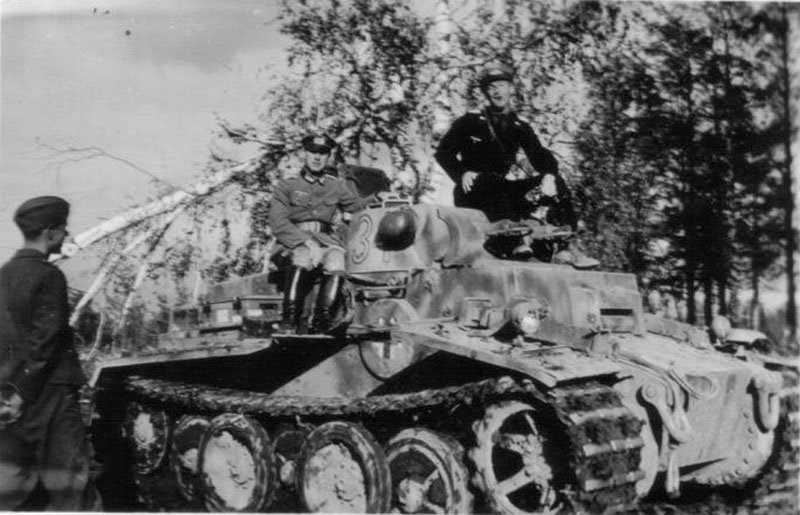

Notes | This was the heavy version which was classed as an infantry assault tank. It was protected by thick armour to be able to absorb more punishment but retain the same armament of a standard Panzer Mk. I with twin MG34s. |
