Year | Ausf A: July 1937 Ausf B: December 1937 Ausf C: June |
Vehicle Type | Light Tank |
Origin & Designer | MAN, Daimler-Benz, Henschel, Wegmann, Alkett, MIAG & FAMO |
Numbers Produced | 1.113 (All Three Marks) |
Crew | 3 (Commander/Gunner, Loader/Radio Operator & Driver) |
Main Armament | 1 x 20mm L/55 KwK 30 or 38 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -9.5 ° to +20° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | TZF-4 |
Secondary Armament | 1 x 7.92mm MG34 |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 180 x 20mm + 2.250 7.92mm |
Height | 1.99m |
Width | 2.22m |
Length | 4.81m |
Combat Weight | 8.900 kg |
Ground Clearance | 0.29m |
Fording Depth | 0.92m |
Trench Crossing | 1.80m |
Obstacle Clearance | 0.42m |
Climbing Ability | 30° |
Radio | FuG-5 |
Armour | Hull Front: 14.5mm (Increased to 20mm in 1940) Hull Sides: 14.5mm Hull Rear: 14.5mm Hull Top: 12mm Hull Bottom: 5mm Gun Mantle: 16mm Turret Front: 14.5mm (Increased to 20mm in 1940)< Turret Sides: 14.5mm Turret Rear: 14.5mm Turret Top: 10mm
|
Engine | Maybach HL 62TR |
Transmission | 6 Forward & 1 Reverse |
Maximum Road Range | 200 km |
Maximum Cross Country Range | 125 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 40 kph |
Maximum Cross Country Speed | 15 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

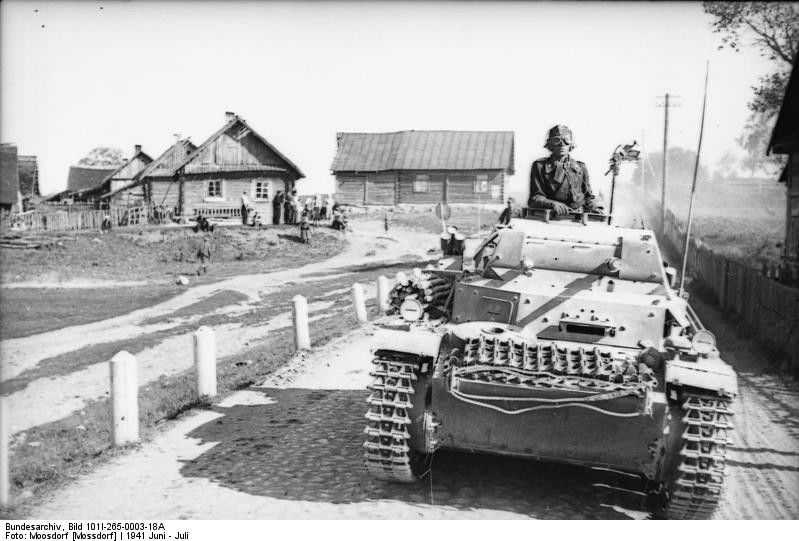

Notes | The development of the panzer II radically changed with the Ausf C, the design took on the look with what we recognise as a Pz Mk. II. The Ausf C was longer than the previous models, but the big change was in the suspension system and this took the form of five road wheels, four return rollers, wider idlers, new drive sprockets and different tracks. Like the Ausf A, the Ausf C went through minor changes these were adopted as production progressed but there was little difference to all three vehicles. |
