Year | 1937 |
Vehicle Type | Medium Battle Tank |
Origin & Designer | Germany/Daimler-Benz |
Numbers Produced | 15 |
Crew | 5 (Commander, Gunner, Loader, Radio Operator & Driver) |
Main Armament | 1 x 37mm L/46.5 KwK 36 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -10° to +20° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | TZF-5a |
Secondary Armament | 3 x 7.92mm MG34s (Coaxial & Bow) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 121 x 37mm + 4.500 x 7.92mm |
Height | 2.39m |
Width | 2.81m |
Length | 5.67m |
Combat Weight | 15.900 kg |
Ground Clearance | 0.38m |
Fording Depth | 0.80m |
Trench Crossing | 2.60m |
Obstacle Clearance | 0.60m |
Climbing Ability | 30° |
Radio | FuG-5 |
Armour | Hull Front: 15mm Hull Sides: 15mm Hull Rear: 15mm Hull Top: 10mm Hull Bottom: 5mm Gun Mantle: 15mm Turret Front: 15mm Turret Sides: 15mm Turret Rear: 15mm Turret Top: 10mm
|
Engine | Maybach HL 108TR (Petrol) |
Transmission | 5 Forward & 1 Reverse |
Maximum Road Range | 165 km |
Maximum Cross Country Range | 95 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 40 kph |
Maximum Cross Country Speed | 18 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

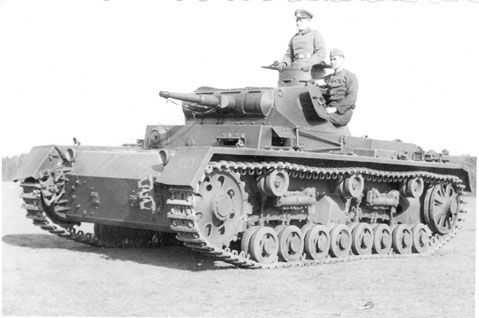

Notes | The Panzer Mk. III Ausf B had a new suspension which was totally different to that of the Ausf A. it consisted of four pairs of road wheels and leaf spring suspension. It also had three return rollers and changes were made to the cupola and air louvres. The Ausf B carried the same armament in the shape of a 37mm KwK 36 gun and twin coaxial MG34s in the turret and a single MG34 in the hull. Like the Panzer Mk. III Ausf A, the Ausf B was withdrawn from frontline service in February 1940, again due to poor armour and suspension problems. |
