PANZERKAMPFWAGEN Mk III AUSF D (Sd.Kfz 141)

PANZERKAMPFWAGEN Mk III AUSF D (Sd.Kfz 141)

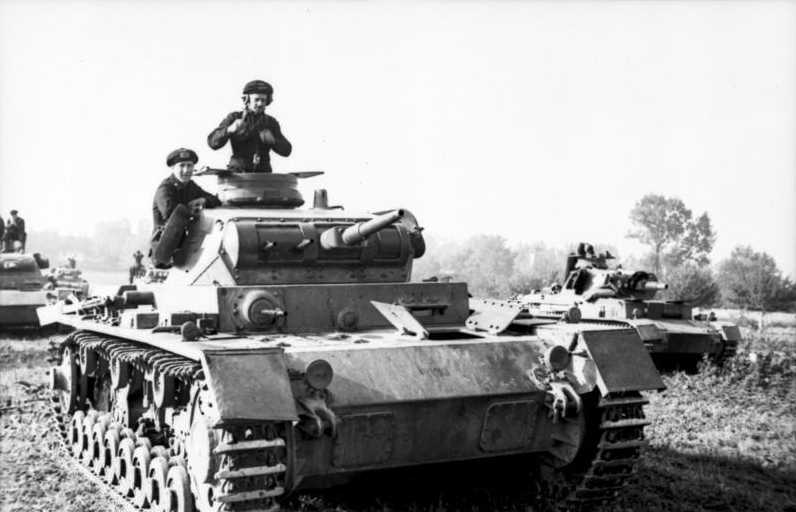

Image: Panzer Mk III Ausf D (Bundesarchiv)
YearJanuary 1938
Vehicle TypeMedium Battle Tank
Origin & DesignerGermany/Daimler-Benz
Numbers Produced30
Crew5 (Commander, Gunner, Loader, Radio Operator & Driver)
Main Armament1 x 37mm L/46.5 KwK 36 Gun
Main Armament[@sponson_traverse]
Elevation-10° to +20°
Turret Traverse360° (Manual)
Gun Traverse[@gun_traverse]
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightTZF-5a
Secondary Armament3 x 7.92mm MG34s (Coaxial & Bow)
Smoke Discharger[@smoke_discharger]
Ammunition Carried121 x 37mm + 4.500 x 7.92mm
Height2.42m
Width2.82m
Length5.92m
Combat Weight16.000 kg
Ground Clearance0.38m
Fording Depth0.80m
Trench Crossing2.30m
Obstacle Clearance0.60m
Climbing Ability30°
RadioFuG-5
ArmourHull Front: 15mm
Hull Sides: 15mm
Hull Rear: 15mm
Hull Top: 10mm
Hull Bottom: 5mm
Gun Mantle: 15mm
Turret Front: 15mm
Turret Sides: 15mm
Turret Rear: 15mm
Turret Top: 10mm
EngineMaybach HL 108TR (Petrol)
Transmission6 Forward & 1 Reverse
Maximum Road Range165 km
Maximum Cross Country Range95 km
Maximum Water Range[@maximum_water_range]
Maximum Road Speed40 kph
Maximum Cross Country Speed18 kph
Maximum Water Speed[@maximum_water_speed]
Variants[@variants]
NotesThe Panzer III Ausf D was fourth vehicle in the series to be built. Changes were made again to the suspension, in a hope to strengthened and support the road wheels. Other changes included new sprockets, idlers, transmission, louvres and cupola. The armament remained the same with a 37mm KwK 36 gun and twin coaxial MG34s. 30 were built and like the previous models was destined to be withdrawn in February 1940, this was temporally put on hold and some saw service during the Norwegian campaign.
