PANZERKAMPFWAGEN Mk III AUSF E (Sd.Kfz 141)

PANZERKAMPFWAGEN Mk III AUSF E (Sd.Kfz 141)

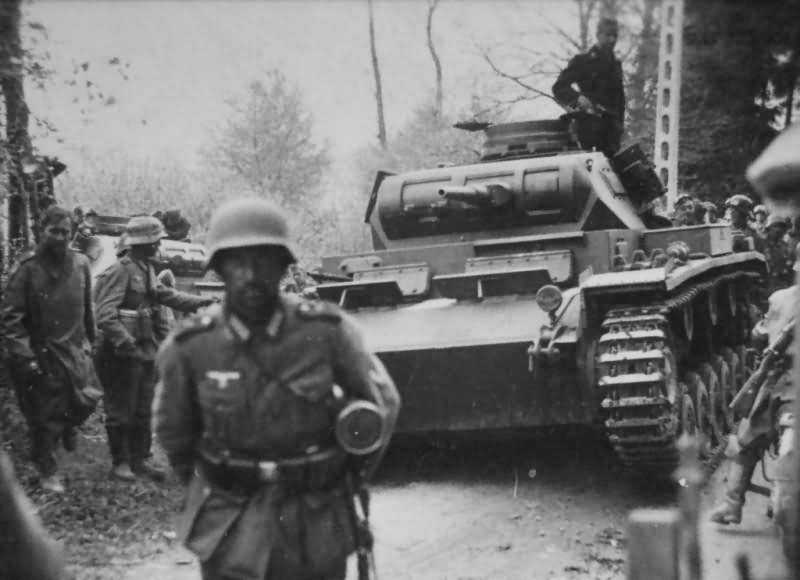

Image: Panzer Mk III Ausf E (Bundesarchiv)
YearDecember 1938
Vehicle TypeMedium Battle Tank
Origin & DesignerGermany/Daimler-Benz, Henschel & MAN
Numbers Produced96
Crew5 (Commander, Gunner, Loader, Radio Operator & Driver)
Main Armament1 x 37mm L/46.5 KwK 36 Gun
Main Armament[@sponson_traverse]
Elevation-10° to +20°
Turret Traverse360° (Manual)
Gun Traverse[@gun_traverse]
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightTZF-5a
Secondary Armament3 x 7.92mm MG34s (Coaxial & Bow)
Smoke Discharger[@smoke_discharger]
Ammunition Carried131 x 37mm + 4.500 x 7.92mm
Height2.44m
Width2.91m
Length5.38m
Combat Weight19.500 kg
Ground Clearance0.38m
Fording Depth0.80m
Trench Crossing2.60m
Obstacle Clearance0.60m
Climbing Ability30°
RadioFuG-5
ArmourHull Front: 30mm
Hull Sides: 30mm
Hull Rear: 21mm
Hull Top: 17mm
Hull Bottom: 16mm
Gun Mantle: 30mm
Turret Front: 30mm
Turret Sides: 30mm
Turret Rear: 30mm
Turret Top: 12mm
EngineMaybach HL 120TR (Petrol)
Transmission10 Forward & 4 Reverse
Maximum Road Range165 km
Maximum Cross Country Range95 km
Maximum Water Range[@maximum_water_range]
Maximum Road Speed40 kph
Maximum Cross Country Speed18 kph
Maximum Water Speed[@maximum_water_speed]
Variants[@variants]
NotesThe suspension problems found on earlier marks of Mk. IIIs were eradicated and the Panzer III Ausf E was the first to be designed with torsion bars which solved the problems. The running gear was now replaced by six road wheels. It also had thicker armour which increased the weight and new escape hatches built into the hull sides. The Ausf E was armed with a 37mm KwK 36 gun and twin coaxial MG34s. In late 1940 some had their 37mm guns replaced with the larger 50mm KwK 38.
