Year | June 1944 |
Vehicle Type | Medium Battle Tank |
Origin & Designer | Germany/Nibelungenwerke |
Numbers Produced | 1.758 |
Crew | 5 (Commander, Gunner, Loader, Radio Operator & Driver) |
Main Armament | 1 x 75mm L/48 KwK 40 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -8° to +20° |
Turret Traverse | 360° (Electric) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | TZF-5f/1 |
Secondary Armament | Secondary Armament: 2 x 7.92mm MG34s (Coaxial & Bow) Nahverteidigungswaffe Close Defense System |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 87 x 75mm + 3.150 x 7.92mm |
Height | 2.68m |
Width | 2.88m |
Length | 7.02m |
Combat Weight | 25.000 kg |
Ground Clearance | 0.40m |
Fording Depth | 1.20m |
Trench Crossing | 2.20m |
Obstacle Clearance | 0.60m |
Climbing Ability | 30° |
Radio | FuG-5 |
Armour | Hull Front: 80mm Hull Sides: 30mm Hull Rear: 20mm Hull Top: 12mm Hull Bottom: 10mm Gun Mantle: 50mm Turret Front: 50mm Turret Sides: 30mm Turret Rear: 30mm Turret Top: 18mm |
Engine | Maybach HL 120TRM112 (Petrol) |
Transmission | 6 Forward & 1 Reverse |
Maximum Road Range | 320 km |
Maximum Cross Country Range | 210 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 38 kph |
Maximum Cross Country Speed | 16 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

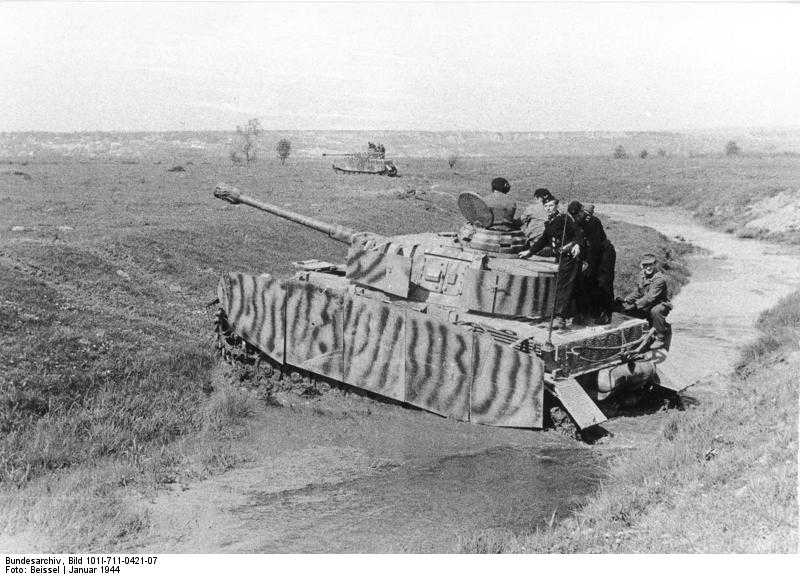

Notes | The Panzer Mk. IV Ausf J was the last in the line of mark IV and had various modifications and changes. The most important was the omission of the engine which gave the turret power traverse, this was now done by hand. Extra armour was given to the turret roof and a Nahverteidigungswaffe (smoke discharger and close defense mortar) was added. The running gear had only three return rollers on each side and various pistol ports and vision ports were also omitted. The Skirt Armour was replaced by wire mesh Schürzen. The Ausf J saw action on every major front from mid-1944 to the end of the war. |
