Year | March 1944 |
Vehicle Type | Medium Tank |
Origin & Designer | Germany/Daimler-Benz, MAN & MNH |
Numbers Produced | 3.126 |
Crew | 5 (Commander, Gunner, Loader, Radio Operator & Driver) |
Main Armament | 1 x 75mm L/70 KwK 42 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -8° to +18° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | TZF12a |
Secondary Armament | 3 x 7.92mm MG34s |
Smoke Discharger | 92mm Grenade Launcher |
Ammunition Carried | 79 x 75mm & 6.900 x 7.92mm + Smoke Grenades |
Height | 2.98m |
Width | 3.40m |
Length | 8.86m |
Combat Weight | 45.500 kg |
Ground Clearance | 0.56m |
Fording Depth | 1.90m |
Trench Crossing | 2.45m |
Obstacle Clearance | 0.90m |
Climbing Ability | 30° |
Radio | FuG-5 |
Armour | Hull Front: 80mm Hull Sides: 50mm Hull Rear: 40mm Hull Top: 16-40mm Hull Bottom: 16.40mm Gun Mantle: 100mm Turret Front: 110mm Turret Sides: 45mm Turret Rear: 45mm Turret Top: 16mm
|
Engine | Maybach HL 230 P30 (Petrol) |
Transmission | 7 Forward & 1 Reverse |
Maximum Road Range | 250 km |
Maximum Cross Country Range | 100 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 46 kph |
Maximum Cross Country Speed | 30 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

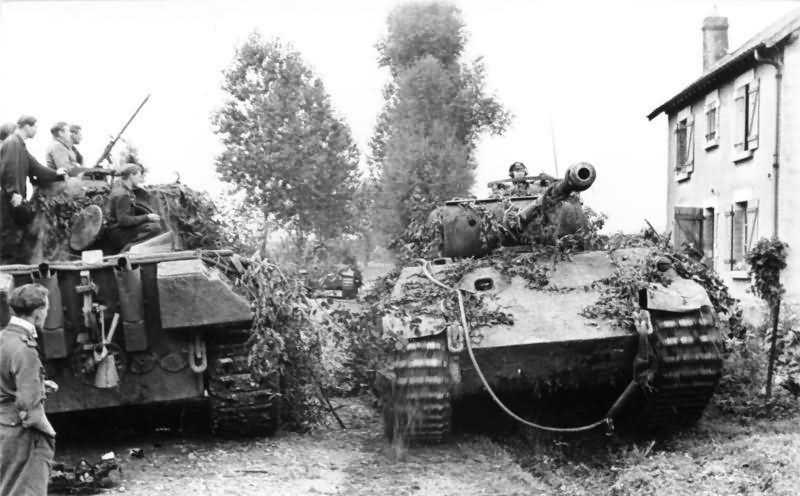

Notes | Panther Mk V Ausf G had a redesigned hull which had better armour and sloped to 30° give better protection. It also contained armoured bins for ammunition storage and had improvements made to the drive chain. Later models had the shot trap eliminated from beneath the Turret front. The Ausf G was produced in larger numbers then the Ausf D and A, and served on both the eastern and western fronts until the wars end. |
