PANZERBEFEHLSWAGEN MIT 5CM L/60 KWK 39 AUSF K (SD.KFZ 267 & 268)

PANZERBEFEHLSWAGEN MIT 5CM L/60 KWK 39 AUSF K (SD.KFZ 267 & 268)

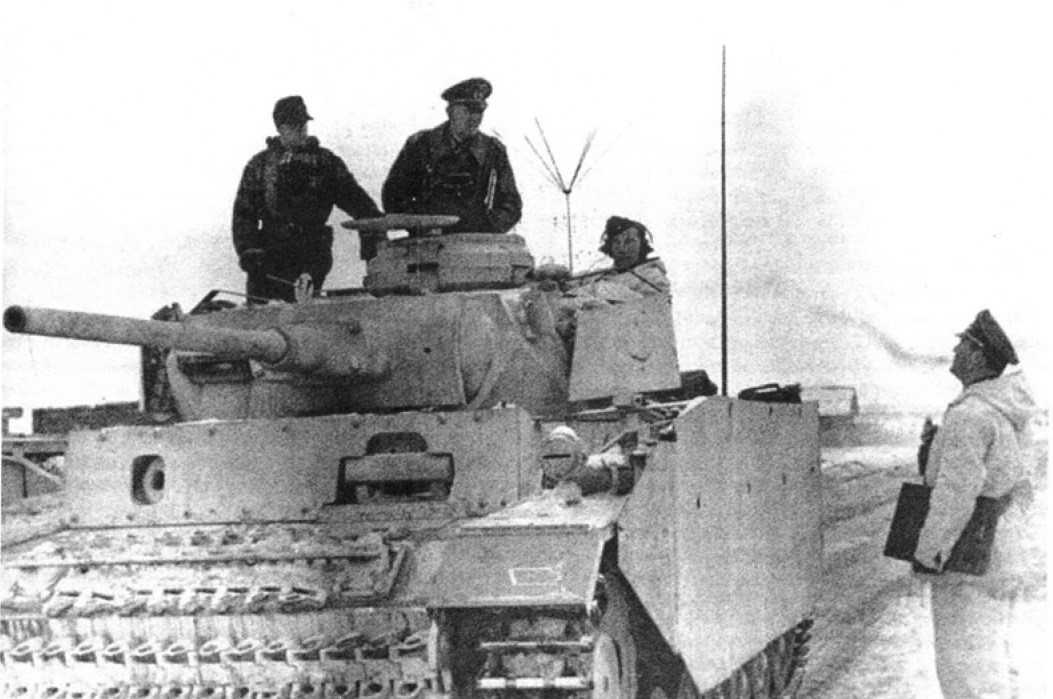

Image: Panzerbefehlswagen Ausf K (War Thunder)
YearDecember 1942
Vehicle TypeMedium Command Tank
Origin & DesignerGermany/Daimler-Benz
Numbers Produced50
Crew5 (Commander/Gunner, Staff Officer, 2 x Radio Operators & Driver)
Main Armament1 x 50mm L/60 KwK 39 Gun
Main Armament[@sponson_traverse]
Elevation-10° to +20°
Turret Traverse360° (Manual)
Gun Traverse[@gun_traverse]
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightTZF5e
Secondary Armament1 x 7.92mm MG34 (Coaxial)
Smoke Discharger[@smoke_discharger]
Ammunition Carried65 x 50mm & 1.500 x 7.92mm
Height2.51m
Width2.95m
Length6.41m
Combat Weight23.000 kg
Ground Clearance0.39m
Fording Depth0.80m
Trench Crossing2.0
Obstacle Clearance0.60m
Climbing Ability30°
RadioSd.Kfz 267: FuG-5 & FuG-8
Sd.Kfz 268: FuG-5 & FuG-7
ArmourHull Front: 50mm
Hull Sides: 30mm
Hull Rear: 50mm
Hull Top: 16mm
Hull Bottom: 18mm
Gun Mantle: 50mm
Turret Front: 57mm
Turret Sides: 30mm
Turret Rear: 30mm
Turret Top: 10mm
EngineMaybach HL 120TRM (Petrol)
Transmission6 Forward & 1 Reverse
Maximum Road Range145 km
Maximum Cross Country Range85 km
Maximum Water Range[@maximum_water_range]
Maximum Road Speed40 kph
Maximum Cross Country Speed19 kph
Maximum Water Speed[@maximum_water_speed]
Variants[@variants]
NotesPz.Bef.Wg III Ausf K was produced by using the Panzer III Ausf M and was armed with the long barrelled 50mm KwK 39 gun. It was the last command tank to be built using the Panzer III. This model had no frame antenna and used a standard star type instead. It also had extra vision and machine gun ports. It was issued in the same role as previous models and served until late 1944.
