Year | 1942 |
Weapon Type | Medium Anti-Tank Gun |
Origin & Designer | Russia-Germany/Putilov |
Numbers Produced | 560 |
Crew | 6 (Commander, Gunner, Loader, Fuze Setter & Two Ammunition Bearers) |
Calibre | 76.2mm (76x385R) |
Elevation | -6° to +25° |
Traverse | 60° |
Breech | Vertical Block |
Recoil | Hydropneumatic |
Gun Sight | Z.F 3x8 |
Gun Mount | [@gun_mounts] |
Carriage | Split Trail |
Trailers | [@trailers] |
Gun Shield | Two 4mm Plates (Spaced Armour) |
Armoured Plate | [@armoured_plate] |
Barrel Length | 3.200mm (L/51) |
Overall Length | 6.88m |
Width | 1.64m |
Height | 1.37m |
Weight | Weight in Traction: 1.640 kg Weight in Action: 1.616 kg
|
Round Weight | Pzgr 40 – 9.55 kg (AP) Sprgr Patr 34 – 9.15 kg (HE) |
Muzzle Velocity | 790 m/s (AP) 548 m/s (HE) |
Feed | [@feed] |
Magazine Capacity | [@magazine_capacity] |
Practical Rate of Fire | [@practical_rate_of_fire] |
Rate of Fire | 12 r.p.m. |
Maximum Rate of Fire | [@maximum_rate_of_fire] |
Maximum Ceiling | [@maximum_ceiling] |
Maximum Ground Range | [@maximum_ground_range] |
Maximum Range | 9000m |
Armour Penetration | 98mm @ 500m @ 30° |
Traction | Motorised |
Variants | [@variants] |

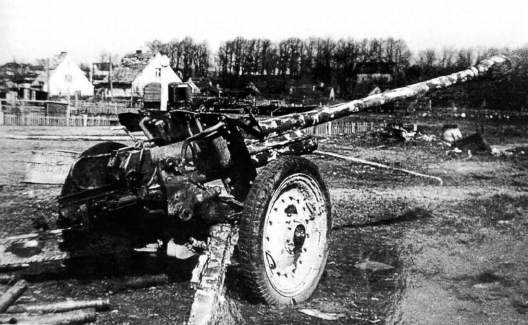

Notes | The PaK 36(r) was developed from stocks of captured Soviet M1936 field guns. It was done in a response to combat the Russian T-34. The Germans were rushing through production of the new PaK 40 anti-tank gun and in the mean time they were looking for a stop gap weapon. They had plenty of captured Soviet ordnance and chose the M1936. Modifications included the lowering of the gun shield and added muzzle break. The gun itself was not as good as the PaK 40 but could knock out any allied tank in existence. They saw action in Russia and North Africa with some still in use in 1945. |
