| Year | 1943 |
| Vehicle Type | Armoured Mortar Carrier |
| Origin & Designer | Germany-France/Renault |
| Numbers Produced | [@numbers_produced] |
| Crew | 4 (Commander, Gunner, Loader & Driver) |
| Main Armament | 1 x 8cm Schwere Granatwerfer 34 |
| Main Armament | [@sponson_traverse] |
| Elevation | [@elevation] |
| Turret Traverse | [@turret_traverse] |
| Gun Traverse | [@gun_traverse] |
| Gun Mount | [@gun_mounts] |
| Maximum Range | [@maximum_range] |
| Armour Penetration | [@armour_penetration] |
| Gun Sight | RA35 |
| Secondary Armament | 1 x 7.92mm MG34 (Pivot) |
| Smoke Discharger | [@smoke_discharger] |
| Ammunition Carried | [@ammunition_carried] |
| Height | 1.88m |
| Width | 1.76m |
| Length | 3.84m |
| Combat Weight | 9000 kg |
| Ground Clearance | 0.32m |
| Fording Depth | 0.60m |
| Trench Crossing | 1.50m |
| Obstacle Clearance | 0.50m |
| Climbing Ability | 45° |
| Radio | FuG Spr a |
| Armour | Hull Front: 13mm Hull Sides: 10mm Hull Rear: 10mm Hull Top: 6mm Hull Bottom: 6mm Gun Compartment: Front: 13mm Sides: 13mm Rear: 10mm Top: Open |
| Engine | Renault 6-Cyl (Petrol) |
| Transmission | 4 Forward & 1 Reverse |
| Maximum Road Range | 200 km |
| Maximum Cross Country Range | 95 km |
| Maximum Water Range | [@maximum_water_range] |
| Maximum Road Speed | 50 kph |
| Maximum Cross Country Speed | 30 kph |
| Maximum Water Speed | [@maximum_water_speed] |
| Variants | [@variants] |

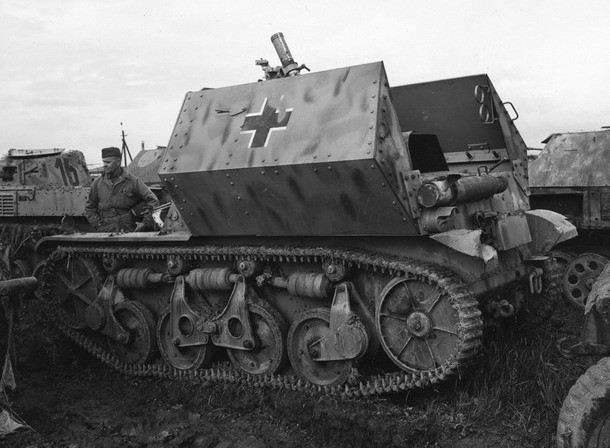

| Notes | The 8cm GrW 34 Pz AMR35 (f) was the first conversion made on a captured French vehicle. They all served with units based in France and were used in action against the allies during the operation to drive the Germans out of France. |
