35M ANSALDO

35M ANSALDO

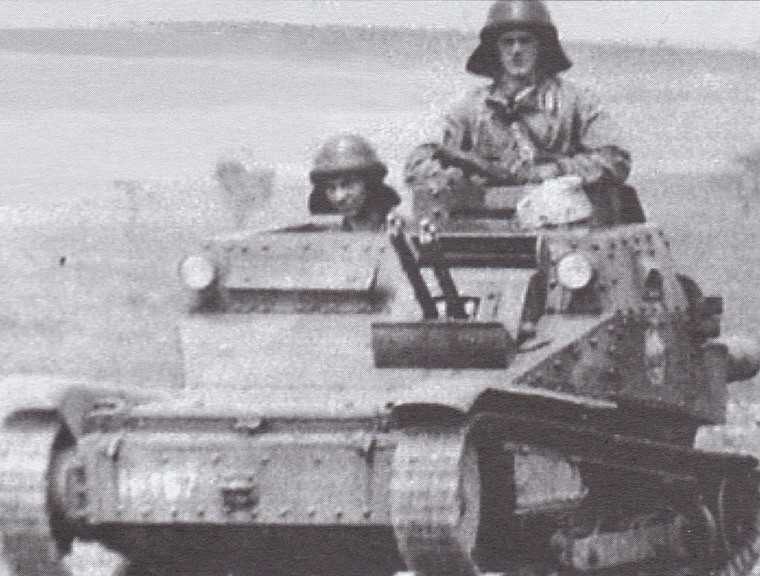

Image: 35M Ansaldo (World of Tanks)
Year1935
Vehicle TypeTankette
Origin & DesignerItaly/Ansaldo
Numbers Produced150
Crew2 (Commander/Gunner & Driver)
Main Armament2 x 8mm Machine Guns
Main Armament[@sponson_traverse]
Elevation15° to +15°
Turret Traverse[@turret_traverse]
Gun Traverse12°Left & Right
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun Sight[@gun_sight]
Secondary Armament[@secondary_armament]
Smoke Discharger[@smoke_discharger]
Ammunition Carried2.320 x 8mm
Height1.28m
Width1.42m
Length3.15m
Combat Weight3.456 kg
Ground Clearance0.25m
Fording Depth1.47m
Trench Crossing2.10m
Obstacle Clearance0.71m
Climbing Ability40°
Radio[@radio]
ArmourHull Front: 14mm
Hull Sides: 9mm
Hull Rear: 9mm
Hull Top: 14mm
Hull Bottom: 6mm
Gun Mantle: 14mm
EngineFiat 4-Cyl (Petrol)
Transmission4 Forward & 1 Reverse
Maximum Road Range120 km
Maximum Cross Country Range100 km
Maximum Water Range[@maximum_water_range]
Maximum Road Speed42 kph
Maximum Cross Country Speed14 kph
Maximum Water Speed[@maximum_water_speed]
Variants[@variants]
NotesThe Hungarian army purchased around 150 CV-35 tankettes from Italy. These were modified to Hungarian specifications and weapons with some having a square cupola. Most of these vehicles were withdrawn from front line use and issued to units on secondary fronts.
