Year | 1939 |
Vehicle Type | Light Tank |
Origin & Designer | Sweden-Hungary/Landsverk-MAVAG & GEPGYAR |
Numbers Produced | 80 |
Crew | 3 (Commander, Gunner & Driver) |
Main Armament | 1 x 20mm 36M Solothurn |
Main Armament | [@sponson_traverse] |
Elevation | [@elevation] |
Turret Traverse | [@turret_traverse] |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | Telescopic |
Secondary Armament | 1 x 8mm 34/37 Machine Gun (Coaxial) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 208 x 20mm & 2.400 x 8mm |
Height | 1.87m |
Width | 2.14m |
Length | 4.75m |
Combat Weight | 8.500 kg |
Ground Clearance | 0.35m |
Fording Depth | 0.70m |
Trench Crossing | 1.77m |
Obstacle Clearance | 0.60m |
Climbing Ability | 36° |
Radio | R/5 |
Armour | Hull Front: 13mm Hull Sides: 13mm Hull Rear: 9mm Hull Top: 10mm Hull Bottom: 6mm Gun Mantle: 13mm Turret Front: 13mm Turret Sides: 19mm Turret Rear: 6mm Turret Top: 6mm
|
Engine | Büssing NAG L8V/36TR (Petrol) |
Transmission | 3 Forward & 3 Reverse |
Maximum Road Range | 220 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 50 kph |
Maximum Cross Country Speed | [@maximum_cross_country_speed] |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

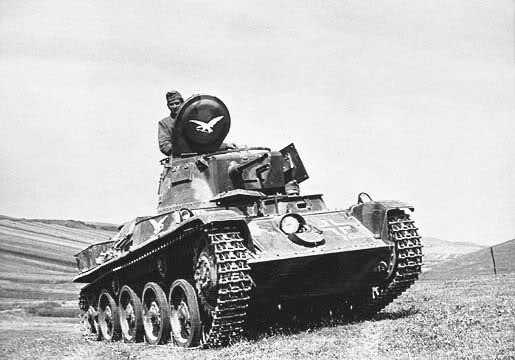

Notes | The Toldi I light tank was based on a Landsverk design. The Hungarians purchased a licence to build copies of this vehicle in 1938 and they were first issued a year later. They saw action with Hungarian armoured forces in Yugoslavia and later Russia. |
