4.7cm 36M PÁNCÉLTÖRŐ ÁGYÚ

4.7cm 36M PÁNCÉLTÖRŐ ÁGYÚ

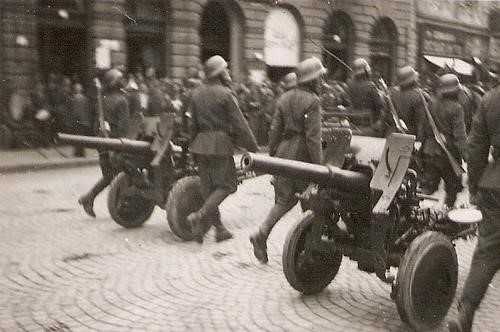

Image: 4.7cm 36M Páncéltörö ágyú (ww2incolor)
Year1942
Weapon TypeLight Anti-Tank Gun
Origin & DesignerBelgium/FRC
Numbers Produced245
Crew7
Calibre47mm (47x280R)
Elevation-3° to +20°
Traverse40°
BreechSemi-Automatic Vertical Sliding Wedge
RecoilHydropneumatic
Gun SightTelescopic
Gun Mount[@gun_mounts]
CarriageSplit Trail
Trailers[@trailers]
Gun Shield4mm
Armoured Plate[@armoured_plate]
Barrel Length1.435mm (L/33.6)
Overall Length[@length]
Width[@width]
Height[@height]
WeightWeight in Traction: 568 kg
Weight in Action: 515 kg
Round WeightHE: 1.66 kg
AP: 1.56 kg
Muzzle VelocityHE: 450 m/s
AP: 675 m/s
Feed[@feed]
Magazine Capacity[@magazine_capacity]
Practical Rate of Fire[@practical_rate_of_fire]
Rate of Fire18 r.p.m.
Maximum Rate of Fire[@maximum_rate_of_fire]
Maximum Ceiling[@maximum_ceiling]
Maximum Ground Range[@maximum_ground_range]
Maximum Range3000m
Armour Penetration40mm @ 500m @ 30°
TractionMotorised
Variants[@variants]
NotesIn 1942 the Germans supplied the Hungarians with equipment and included with this hardware was weapons captured from other nations. Included in this were around 245 Belgian 47mm anti-tanks. These were initially towed by tractors, but the Hungarians decided to issue the gun to cavalry units, which found the weapon too heavy for horse traction. Many of these guns were issued to units on secondary fronts because of their weight.
