38M PÁNCÉLTÖRŐ ÁGYÚ

38M PÁNCÉLTÖRŐ ÁGYÚ

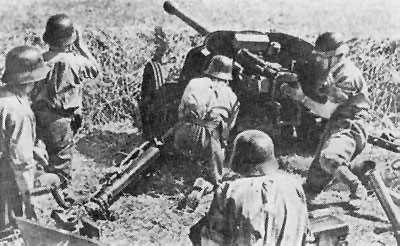

Image: 38M Páncéltörö ágyú (Flames of War)
Year1942
Weapon TypeLight Anti-Tank Gun
Origin & DesignerGermany/Rheinmetall
Numbers Produced[@numbers_produced]
Crew7
Calibre50mm (50x419R)
Elevation-8° to +27°
Traverse65°
BreechHorizontal Sliding Wedge
RecoilHydropneumatic
Gun SightTelescopic
Gun Mount[@gun_mounts]
CarriageSplit Trail
Trailers[@trailers]
Gun Shield8mm (Two 4mm Plates)
Armoured Plate[@armoured_plate]
Barrel Length3000mm (L/60)
Overall Length4.75m
Width1.88m
Height1.05m
WeightWeight in Traction: 1.062 kg
Weight in Action: 986 kg
Round WeightHE: 3.28 kg
AP: 4.13 kg
Muzzle VelocityHE: 550 m/s
AP: 835 m/s
Feed[@feed]
Magazine Capacity[@magazine_capacity]
Practical Rate of Fire[@practical_rate_of_fire]
Rate of Fire13 r.p.m.
Maximum Rate of Fire[@maximum_rate_of_fire]
Maximum Ceiling[@maximum_ceiling]
Maximum Ground Range[@maximum_ground_range]
Maximum Range6.550m
Armour Penetration57mm @ 500m @ 30°
TractionMotorised
Variants[@variants]
NotesDue to heavy losses inflicted on the Hungarians during 1942, the German decided to send anti-tank assets to bolster their ally. This included a consignment of 50mm PaK 38 guns and these were issued to the troops as the 38M.
