Year | 1942 |
Vehicle Type | Medium Command Tank |
Origin & Designer | Italy/Ansaldo |
Numbers Produced | 79 |
Crew | 4 (Commander, 2 x Gunners & Driver) |
Main Armament | 1 x 13.2mm Bread M31 Heavy Machine Gun |
Main Armament | [@sponson_traverse] |
Elevation | -8° to +20° |
Turret Traverse | [@turret_traverse] |
Gun Traverse | 12° Left & Right (Manual) |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | [@gun_sight] |
Secondary Armament | 1 x 8mm Breda M38 Machine Gun (Roof) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 420 x 13.2mm & 1.600 x 8mm |
Height | 1.82m |
Width | 2.20m |
Length | 4.92m |
Combat Weight | 12.500 kg |
Ground Clearance | 0.41m |
Fording Depth | 1.0m |
Trench Crossing | 2.10m |
Obstacle Clearance | 0.80m |
Climbing Ability | 45° |
Radio | RF.1 CA & RF.2 CA |
Armour | Hull Front: 30mm Hull Sides: 25mm Hull Rear: 25mm Hull Top: 15mm Hull Bottom: 11mm Gun Compartment: Front: 30mm Sides: 25mm Rear: 25mm Top: 15mm |
Engine | SPA 15T M41 (Diesel) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 230 km |
Maximum Cross Country Range | 140 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 35 kph |
Maximum Cross Country Speed | 16 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

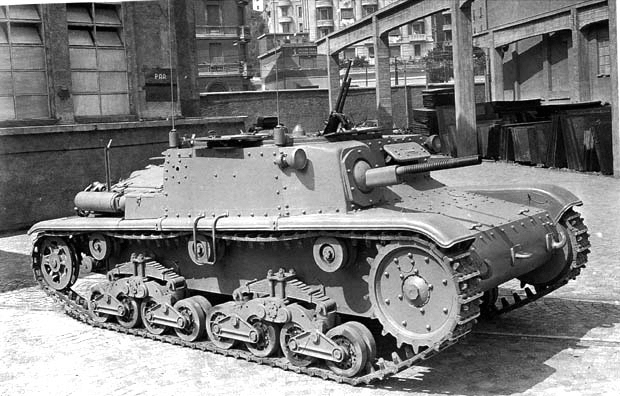

Notes | The M41 was a command tank built on the M14/41 chassis. It carried radios and communication equipment and issued to Semovente batteries. |
