Year | 1934 |
Weapon Type | Medium Anti-Aircraft Gun |
Origin & Designer | Italy/Ansaldo |
Numbers Produced | 226 |
Crew | 7 |
Calibre | 75mm |
Elevation | -2° to +90° |
Traverse | 360° |
Breech | Horizontal Sliding Block |
Recoil | Hydropneumatic |
Gun Sight | [@gun_sight] |
Gun Mount | Cruciform |
Carriage | Two Wheeled Trailer |
Trailers | [@trailers] |
Gun Shield | [@gun_shield] |
Armoured Plate | [@armoured_plate] |
Barrel Length | 3.450mm (L/46) |
Overall Length | 6.0m |
Width | [@width] |
Height | [@height] |
Weight | Weight in Traction: 4.405 kg Weight in Action: 3.300 kg |
Round Weight | 6.5 kg (HE) |
Muzzle Velocity | 750 m/s |
Feed | [@feed] |
Magazine Capacity | [@magazine_capacity] |
Practical Rate of Fire | [@practical_rate_of_fire] |
Rate of Fire | 15 r.p.m. |
Maximum Rate of Fire | [@maximum_rate_of_fire] |
Maximum Ceiling | 8.500m |
Maximum Ground Range | 13.000m |
Maximum Range | [@maximum_range] |
Armour Penetration | 93mm @ 500m @ 30° |
Traction | Motorised (Pavesi P4) |
Variants | [@variants] |

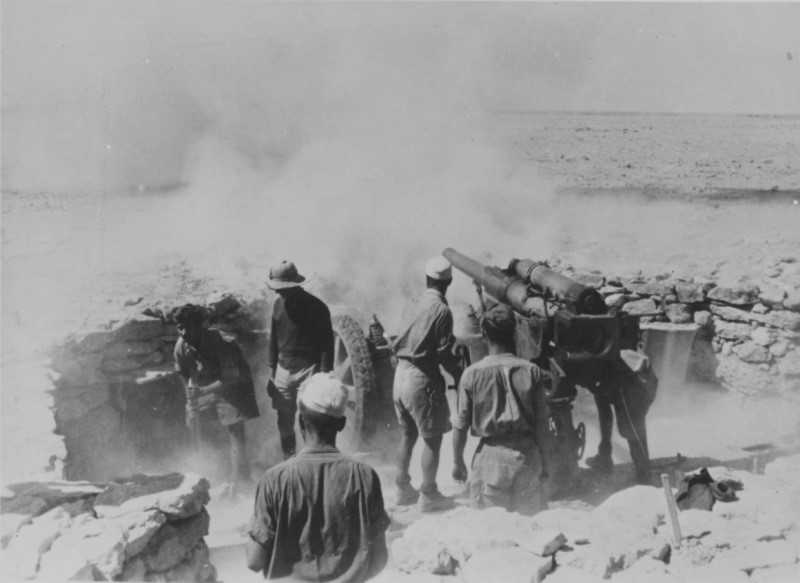

Notes | The 75/46 Modello 34 was a good weapon but was hampered by slow production. It was only produced in small numbers and these gave a good account for themselves in Greece, Russia, North Africa and Sicily. It saw action as both an anti-aircraft gun and an improvised artillery piece and was even used in the anti-tank role. |
