Year | 1915 |
Weapon Type | Light Mountain Gun |
Origin & Designer | Czechoslovakia/Skoda |
Numbers Produced | 1.167 |
Crew | 6 |
Calibre | 75mm (75x129R) |
Elevation | -10° to +50° |
Traverse | 7° |
Breech | Semi-Automatic Horizontal Sliding Wedge |
Recoil | Hydropneumatic |
Gun Sight | [@gun_sight] |
Gun Mount | [@gun_mounts] |
Carriage | Box Trail |
Trailers | [@trailers] |
Gun Shield | 4.2mm |
Armoured Plate | [@armoured_plate] |
Barrel Length | 1.150mm (L/13) |
Overall Length | 3.57m |
Width | 1.11m |
Height | 1.28m |
Weight | 620 kg (In Action) |
Round Weight | 6.5 kg (HE) |
Muzzle Velocity | 386 m/s |
Feed | [@feed] |
Magazine Capacity | [@magazine_capacity] |
Practical Rate of Fire | [@practical_rate_of_fire] |
Rate of Fire | 10 r.p.m. |
Maximum Rate of Fire | [@maximum_rate_of_fire] |
Maximum Ceiling | [@maximum_ceiling] |
Maximum Ground Range | [@maximum_ground_range] |
Maximum Range | 8.500m |
Armour Penetration | 48mm @ 500m @ 30° |
Traction | Pack (Seven Loads) Motorised (Truck) |
Variants | [@variants] |

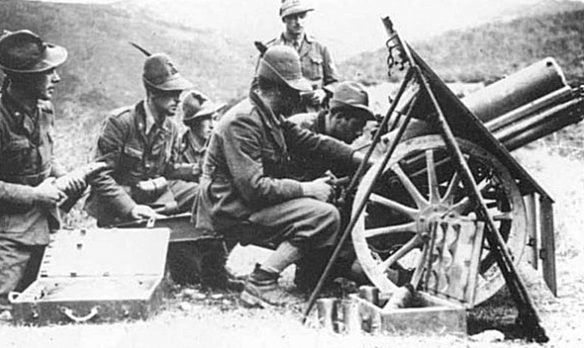

Notes | The 75/13 was initially designed by Skoda and many fell into Italian hands during and after the First World War. It was a well proven mountain gun and could be broken down into seven loads for pack transport. It equipped mountain artillery regiments and saw action in Spain, Greece and Russia. |
