Year | 1906 |
Weapon Type | Light Field Gun |
Origin & Designer | Germany-Italy/Krupp-Terni |
Numbers Produced | 1.999 |
Crew | Commander Gunner/Aimer Gunner/Firer 2 x Loaders |
Calibre | 75mm (75x185R) |
Elevation | -10° to +16° |
Traverse | 7° |
Breech | Horizontal Sliding Block |
Recoil | Hydrospring |
Gun Sight | [@gun_sight] |
Gun Mount | [@gun_mounts] |
Carriage | Pole Trail |
Trailers | [@trailers] |
Gun Shield | 4mm |
Armoured Plate | [@armoured_plate] |
Barrel Length | 2.250mm (L/30) |
Overall Length | 4.20m |
Width | [@width] |
Height | [@height] |
Weight | Weight in Traction: 1.080 kg Weight in Action: 1.015 kg |
Round Weight | 6.35 kg (HE) |
Muzzle Velocity | 502 m/s |
Feed | [@feed] |
Magazine Capacity | [@magazine_capacity] |
Practical Rate of Fire | 6 r.p.m. |
Rate of Fire | [@rate_of_fire] |
Maximum Rate of Fire | 15 r.p.m. |
Maximum Ceiling | [@maximum_ceiling] |
Maximum Ground Range | [@maximum_ground_range] |
Maximum Range | 6.800m |
Armour Penetration | 56mm @ 500m @ 30 |

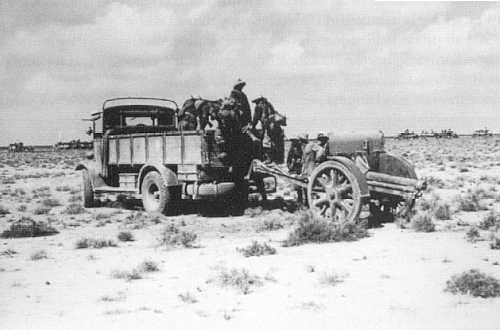

Traction | Horse drawn (Six Horses) & Motorised (Truck) |
Variants | [@variants] |
Notes | The 75/27 Modello was the standard light field used by the Italians during World War One. It was licenced built copy of Krupp K06 and was equivalent to many of the light field guns in service at that time. The Modello 06 was still in service in World War Two and equipped artillery units during the early phase of the conflict with being converted for motorised traction. |
