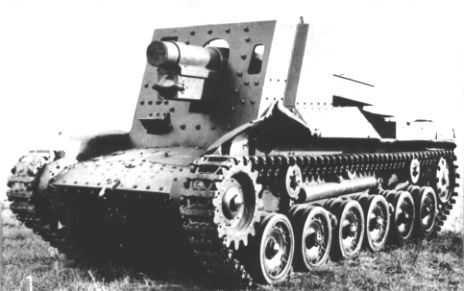

Image: Ho-Ro (Wikipedia)
Vehicle TypeSelf-Propelled Howitzer
Origin & DesignerJapan/Hitachi
Numbers Produced25
Crew5 (Commander, Gunner, 2 x Loaders & Driver)
Main Armament1 x Type 150mm L/12 Howitzer
Main Armament[@sponson_traverse]
Elevation-5° to +20°
Turret Traverse[@turret_traverse]
Gun Traverse3° Lift & Right (Manual)
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightTelescopic
Secondary Armament[@secondary_armament]
Smoke Discharger[@smoke_discharger]
Ammunition Carried28 x 150mm
Combat Weight16.300 kg
Ground Clearance0.36m
Fording Depth1.0m
Trench Crossing2.50m
Obstacle Clearance0.90m
Climbing Ability34°
RadioType 96 Mk.4
ArmourHull Front: 25mm
Hull Sides: 20mm
Hull Rear: 20mm
Hull Top: 13mm
Hull Bottom: 8mm
Gun Mantle: 16mm
Gun Shield Front: 25mm
Gun Shield Sides: 12.7mm
Gun Shield Rear: Open
Gun Shield Top: Open
EngineMitsubishi Type 97 170 HP (Diesel)
Transmission4 Forward & 1 Reverse
Maximum Road Range210 km
Maximum Cross Country Range90 km
Maximum Water Range[@maximum_water_range]
Maximum Road Speed38 kph
Maximum Cross Country Speed26 kph
Maximum Water Speed[@maximum_water_speed]
NotesThe Ho-Ro was an assault howitzer similar to the ones developed by Germany. The Germans had made good use of mounting 15cm infantry guns on tank chassis to produce a close support vehicle. The chassis used was again from the Chi-Ha medium tank and this mounted a 150mm howitzer. It suffered like the early versions of the Ho-Ni did, with the lack of protection given to the crew. It was produced in small numbers and these saw action in the Philippines and Okinawa.
