Year | 1931 |
Vehicle Type | Medium Tank |
Origin & Designer | Japan/Mitsubishi |
Numbers Produced | 278 |
Crew | 4 (Commander/Gunner, Loader, Hull Gunner & Driver) |
Main Armament | 1 x Type 90 57mm L/14.4 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -15° to +20° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | Telescopic |
Secondary Armament | 2 x Type 91 6.5mm Machine Guns (Bow & Rear Turret) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 100 x 57mm & 2.745 x 6.5mm |
Height | 2.57m |
Width | 2.16m |
Length | 5.87m |
Combat Weight | 9.900 kg |
Ground Clearance | 0.48m |
Fording Depth | 1.0m |
Trench Crossing | 2.51m |
Obstacle Clearance | 0.84m |
Climbing Ability | 34° |
Radio | Type 94 Mk. 4 |
Armour | Hull Front: 17mm Hull Sides: 17mm Hull Rear: 17mm Hull Top: 10mm Hull Bottom: 6mm Gun Mantle: 10mm Turret Front: 15mm Turret Sides: 15mm Turret Rear: 15mm Turret Top: 10mm |
Engine | Daimler 118 HP (Petrol) |
Transmission | 6 Forward & 1 Reverse |
Maximum Road Range | 140 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 25 kph |
Maximum Cross Country Speed | 18 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

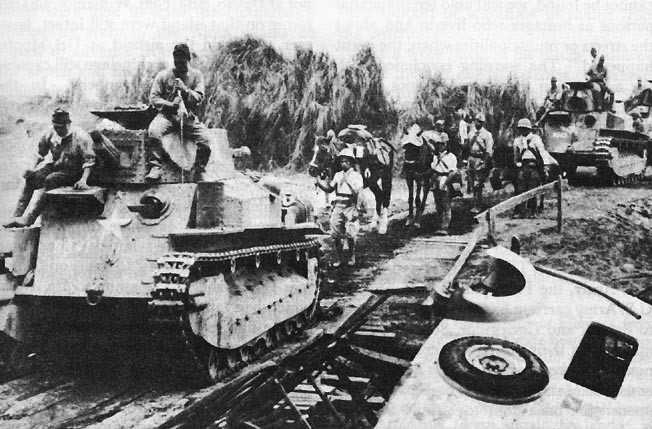

Notes | The Type 89 was initially designed as a light tank, but subsequent improvements added to the weight and the vehicle was classed as a medium. It bore some semblance to the British Vickers C and after various trials and modifications it was standardised as the main battle tank and used in battle in China and Manchuria. The 89A was armed with a short barrelled type 90 57mm gun and two machine guns which was adequate for the infantry support role but suffered from having a high silhouette. It was given the designation Type 89A Ko, when the improved model Otsu was introduced. |
