Year | 1931 |
Vehicle Type | Light Tankette |
Origin & Designer | Poland-Britain/PZInż-Carden Loyd |
Numbers Produced | 280 |
Crew | 2 (Commander/Gunner & Driver) |
Main Armament | 1 x 7.92mm Wz.25 Machine Gun |
Main Armament | [@sponson_traverse] |
Elevation | 50° |
Turret Traverse | [@turret_traverse] |
Gun Traverse | 40° |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | Optical |
Secondary Armament | [@secondary_armament] |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 1.800 x 7.92mm |
Height | 1.32m |
Width | 1.78m |
Length | 2.65m |
Combat Weight | 2.430 kg |
Ground Clearance | 0.30m |
Fording Depth | 0.50m |
Trench Crossing | 1.20m |
Obstacle Clearance | 0.45m |
Climbing Ability | 37° |
Radio | [@radio] |
Armour | Hull Front: 6mm Hull Sides: 8mm Hull Rear: 8mm Hull Top: 4mm Hull Bottom: 7mm Gun Mantle: 8mm Gun Compartment Front: 8mm Gun Compartment Sides: 8mm Gun Compartment Rear: 8mm Gun Compartment Top: 4mm
|
Engine | Ford Model A (Petrol) |
Transmission | 3 Forward & 1 Reverse |
Maximum Road Range | 200 km |
Maximum Cross Country Range | 100 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 45 kph |
Maximum Cross Country Speed | 20 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

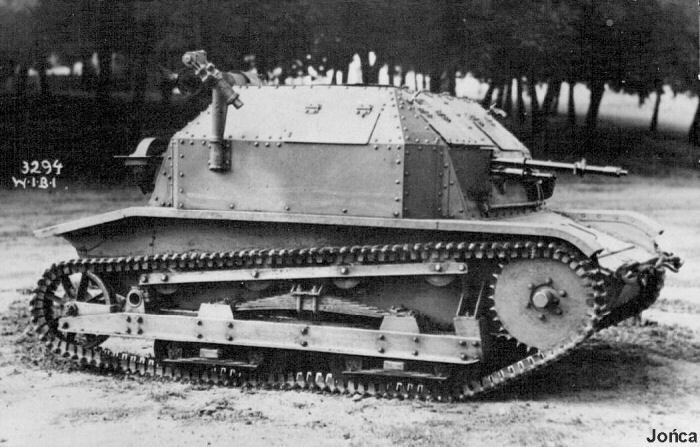

Notes | The TK 3 was a light tankette which was built and designed in Poland. The Polish army had already bought a licence to build Carden-Loyd tankettes and did some alterations to the running gear which finished up being used on the TK series. The TK 3 was only armed with a single machine gun and issued to motorised cavalry divisions. |
