Year | 1935 |
Vehicle Type | Light Tank |
Origin & Designer | Poland-Britain/PZInż-Vickers |
Numbers Produced | 170 |
Crew | 3 (Commander/Gunner, Loader & Driver) |
Main Armament | 1 x 37mm L/45 Wz.37 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -5° to +29° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | Telescopic |
Secondary Armament | 1 x 7.92mm CKm Wz.30 Machine Gun |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 80 x 37mm & 3.960 x 7.92mm |
Height | 2.27m |
Width | 2.40m |
Length | 4.60m |
Combat Weight | 9.400 kg |
Ground Clearance | 0.38m |
Fording Depth | 1.0m |
Trench Crossing | 3.12m |
Obstacle Clearance | 0.61m |
Climbing Ability | 35° |
Radio | N2C |
Armour | Hull Front: 17mm (40mm Later) Hull Sides: 13mm Hull Rear: 8mm Hull Top: 5mm Hull Bottom: 9mm Gun Mantle: 13mm Turret Front: 15mm Turret Sides: 15mm Turret Rear: 15mm Turret Top: 10mm |
Engine | Saurer VBLD-b (Diesel) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 150 km |
Maximum Cross Country Range | 130 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 37 kph |
Maximum Cross Country Speed | 20 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

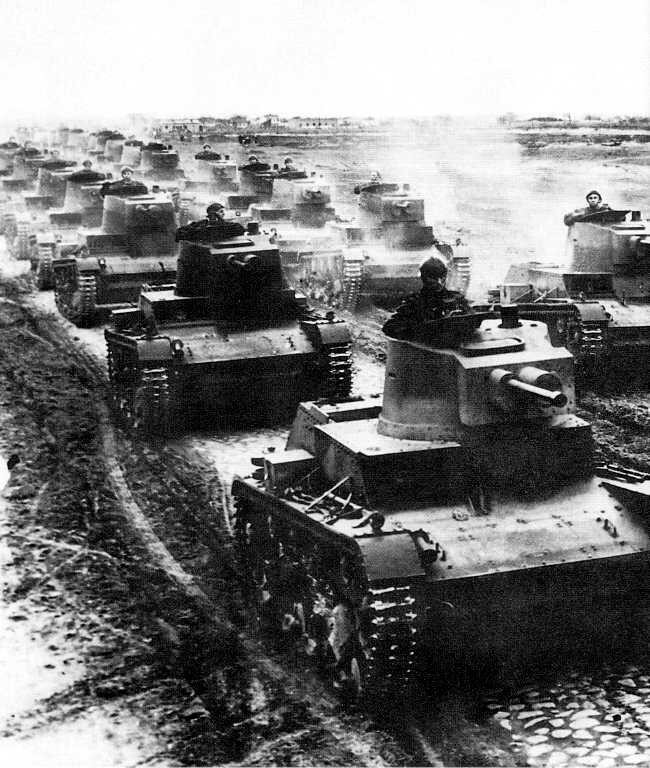

Notes | The 7TP JW was a gun version of the 7TP series and was the best Polish tank available in 1939. It had a single turret and armed with a 37mm gun, which was a version of the Bofors anti-tank gun which was the standard anti-tank gun at the time. Like the “DW” version the “JW” was issued to two light tank battalions and two independent light tank companies. |
