Year | 1936 |
Vehicle Type | Light Tankette |
Origin & Designer | Czechoslovakia/ČKD |
Numbers Produced | 35 |
Crew | 2 (Commander/Gunner & Driver) |
Main Armament | 1 x 7.92mm ZB-37 Machine Gun |
Main Armament | [@sponson_traverse] |
Elevation | [@elevation] |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | Optical |
Secondary Armament | 1 x 7.92mm ZB-30 Machine Gun (Hull) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 3000 x 7.92mm |
Height | 1.67m |
Width | 1.79m |
Length | 3.20m |
Combat Weight | 3.500 kg |
Ground Clearance | 0.32m |
Fording Depth | 0.90m |
Trench Crossing | 1.50m |
Obstacle Clearance | 0.60m |
Climbing Ability | 45° |
Radio | [@radio] |
Armour | Hull Front: 12mm Hull Sides: 8mm Hull Rear: 8mm Hull Top: 8mm Hull Bottom: 6mm Gun Mantle: 12mm Turret Front: 12mm Turret Sides: 12mm Turret Rear: 12mm Turret Top: 8mm
|
Engine | Praha 6-Cyl (Petrol) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 160 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 45 kph |
Maximum Cross Country Speed | 20 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

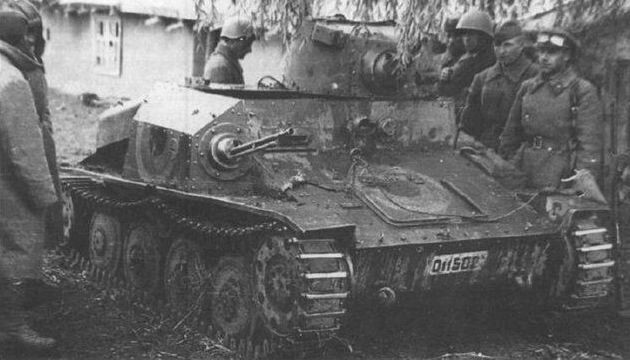

Notes | The R-1 was a CKD AH-IV tankette which 35 were purchased by the Romania army in 1936. It was subject to a number of modifications before they were bought and these included the omission of the cupola, thinner armour and different engine, all of which was done to keep the weight down. It used as a reconnaissance tank and served in mechanised cavalry brigades. |
