T-60 M1942

T-60 M1942

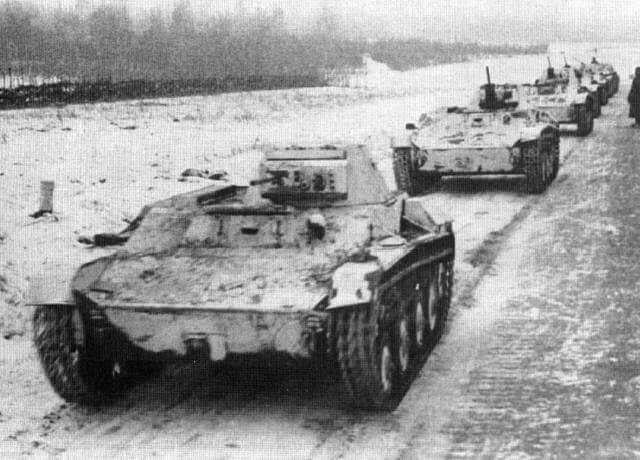

Image: T-60 M1942 (Red Army Photo)
Vehicle TypeLight Tank
Origin & Designer[@designer]
Numbers Produced2000
Crew2 (Commander/Gunner & Driver)
Main Armament1 x 20mm L/107 TNSh Cannon
Main Armament[@sponson_traverse]
Elevation-10° to +40°
Turret Traverse360° (Manual)
Gun Traverse[@gun_traverse]
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightTMPD-1
Secondary Armament1 x 7.62mm DT Machine Gun (Coaxial)
Smoke Discharger[@smoke_discharger]
Ammunition Carried780 x 20mm & 945 x 7.62mm
Combat Weight6.400 kg
Ground Clearance0.30m
Fording Depth0.90m
Trench Crossing1.70m
Obstacle Clearance0.60m
Climbing Ability29°
ArmourHull Front: 35mm
Hull Sides: 15mm
Hull Rear: 25mm
Hull Top: 13mm
Hull Bottom: 10mm
Gun Mantle: 20mm
Turret Front: 25mm
Turret Sides: 25mm
Turret Rear: 25mm
Turret Top: 10mm
EngineGAZ-202 (Petrol)
Transmission4 Forward & 1 Reverse
Maximum Road Range600 km
Maximum Cross Country Range300 km
Maximum Water Range[@maximum_water_range]
Maximum Road Speed45 kph
Maximum Cross Country Speed30 kph
Maximum Water Speed[@maximum_water_speed]
NotesThe model 1942 was an up-armoured version of the T-60, with a maximum thickness of 35mm. it was used in a similar way to the model 1941.
