Year | March 1942 |
Vehicle Type | Light Tank |
Origin & Designer | [@designer] |
Numbers Produced | 8.226 |
Crew | 2 (Commander/Gunner & Driver) |
Main Armament | 45mm L/46 M1938 20K Gun |
Main Armament | [@sponson_traverse] |
Elevation | -6° to +20° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | P.T.1. |
Secondary Armament | 1 x 7.62mm DT Machine Gun |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 94 x 45mm & 945 x 7.62mm |
Height | 2.0m |
Width | 2.40m |
Length | 4.30m |
Combat Weight | 9.200 kg |
Ground Clearance | 0.30m |
Fording Depth | 0.90m |
Trench Crossing | 1.80m |
Obstacle Clearance | 0.70m |
Climbing Ability | 32° |
Radio | 12RT |
Armour | Hull Front: 35mm Hull Sides: 15mm Hull Rear: 25mm Hull Top: 10mm Hull Bottom: 10mm Gun Mantle: 60mm Turret Front: 35mm Turret Sides: 35mm Turret Rear: 35mm Turret Top: 10mm
|
Engine | Twin GAZ-202 (Petrol) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | 360 km |
Maximum Cross Country Range | 180 km |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | 45 kph |
Maximum Cross Country Speed | 35 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | [@variants] |

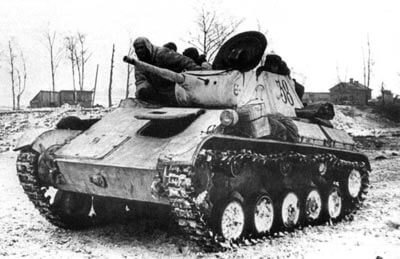

Notes | The T-70 was developed as a replacement for the inadequate T-60. It was better armed then the T-60 and had a better off road performance. Production ceased in 1943 as the Soviets attempted to equip their armoured battalions with T-34s and light tanks were mainly relegated for duty in rear areas. |
