Year | 1933 |
Vehicle Type | Medium Convertible Tank |
Origin & Designer | [@designer] |
Numbers Produced | 2.018 |
Crew | 3 (Commander/Loader, Gunner & Driver) |
Main Armament | 1 x 45mm L/46 M1932 Gun |
Main Armament | [@sponson_traverse] |
Elevation | -4° to +40° |
Turret Traverse | 360° (Manual) |
Gun Traverse | [@gun_traverse] |
Gun Mount | [@gun_mounts] |
Maximum Range | [@maximum_range] |
Armour Penetration | [@armour_penetration] |
Gun Sight | TSMF. PT-1 |
Secondary Armament | 2 x 7.62mm DT Machine Guns (Turret Rear & Bow) |
Smoke Discharger | [@smoke_discharger] |
Ammunition Carried | 115 x 45mm & 2.709 x 7.62mm |
Height | 2.20m |
Width | 2.23m |
Length | 5.51m |
Combat Weight | 11.500 kg |
Ground Clearance | 0.35m |
Fording Depth | 0.90m |
Trench Crossing | 2.0m |
Obstacle Clearance | 0.75m |
Climbing Ability | 40° |
Radio | [@radio] |
Armour | Hull Front: 13mm Hull Sides: 13mm Hull Rear: 13mm Hull Top: 6mm Hull Bottom: 10mm Gun Mantle: 13mm Turret Front: 13mm Turret Sides: 13mm Turret Rear: 13mm Turret Top: 10mm |
Engine | Liberty M-5 (Petrol) |
Transmission | 4 Forward & 1 Reverse |
Maximum Road Range | Wheels: 250 km Tracks: 150 km |
Maximum Cross Country Range | [@maximum_cross_country_range] |
Maximum Water Range | [@maximum_water_range] |
Maximum Road Speed | Wheels: 72 kph Tracks: 52 kph |
Maximum Cross Country Speed | Tracks: 20 kph |
Maximum Water Speed | [@maximum_water_speed] |
Variants | Command version carried a 71-TK-1 Radio |

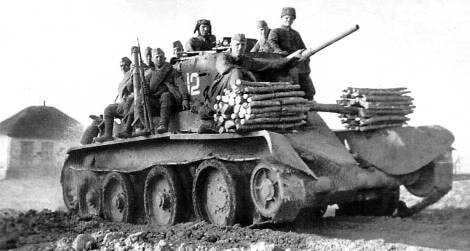

Notes | The BT-5 was classed by the Soviets as a fast cruiser tank and this speed was mainly down to the suspension system that was designed by the American Walter Christie. It also built as a convertible tank and ran on large road wheels which could run on either tracks or on their own. It had a two man turret and mounted a 45mm gun. It was considered the fore runner for the T-34 and was produced in large numbers, due to the numbers in service it saw action on all fronts and suffered grave losses against the Germans mainly due to thin armour and bad handling. |
