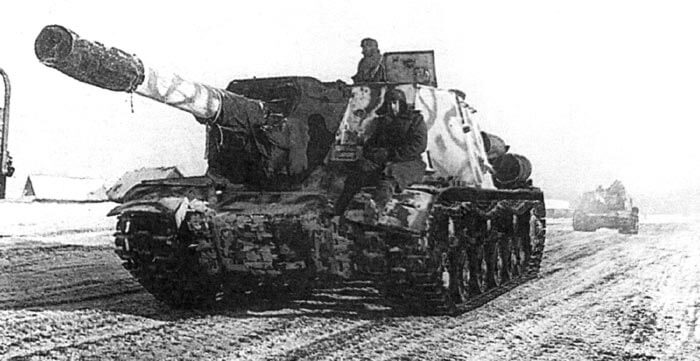

Image: ISU-152 (Red Army Photo)
YearSeptember 1943
Vehicle TypeHeavy Assault Howitzer
Origin & Designer[@designer]
Numbers Produced2.574
Crew5 (Commander, Gunner, Two Loaders & Driver)
Main Armament152mm L/28 ML-20 Howitzer
Main Armament[@sponson_traverse]
Elevation-3° to +20°
Turret Traverse[@turret_traverse]
Gun Traverse10° Left & Right (Manual)
Gun Mount[@gun_mounts]
Maximum Range[@maximum_range]
Armour Penetration[@armour_penetration]
Gun SightPT-5
Secondary Armament1 x 12.7mm DShK (AA Mount)
Smoke Discharger[@smoke_discharger]
Ammunition Carried20 x 152mm & 250 x 12.7mm
Combat Weight41.800 kg
Ground Clearance0.45m
Fording Depth1.30m
Trench Crossing2.50m
Obstacle Clearance1.0m
Climbing Ability36°
ArmourHull Front: 90mm
Hull Sides: 90mm
Hull Rear: 60mm
Hull Top: 30mm
Hull Bottom: 20mm
Gun Compartment:
Gun Mantle: 65mm
Front: 90mm
Sides: 75mm
Rear: 60mm
Top: 30mm
EngineV-2-IS (Diesel)
Transmission4 Forward & 1 Reverse
Maximum Road Range220 km
Maximum Cross Country Range80 km
Maximum Water Range[@maximum_water_range]
Maximum Road Speed37 kph
Maximum Cross Country Speed16 kph
Maximum Water Speed[@maximum_water_speed]
NotesWith the success of the SU-152, it was decided to build an improved model utilising the chassis of IS tank and this was to have better armour and retain the same 152mm heavy howitzer. It was a better vehicle then the previous SU-152 and made good sense to up-grade from the old KV-1 chassis to the new IS chassis. It was issued in a similar way as the previous models and to independent heavy artillery regiments.
