SG-43 MACHINE GUN

SG-43 MACHINE GUN

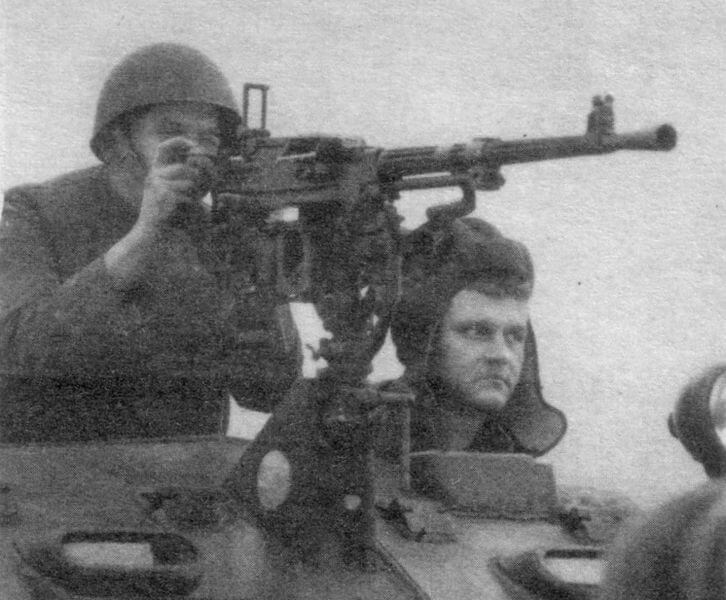

Image: SG-43 Machine Gun (Wikipedia)
Year1943
Weapon TypeMedium Machine Gun
Origin & DesignerRussia/Goryunov
Numbers Produced80.000
Crew5
Calibre7.62mm (7.62x54R)
Elevation[@elevation]
Traverse[@gun_traverse]
Cartridge Weight[@cartridge_weight]
Round Weight147gr (9.5g)
Barrel Length720mm
Overall Length1.150mm
Grenade Types[@grenade_types]
MountTwo Wheeled Carriage
Combat Weight41 kg (With Mount)
OperationGas Operated/Fully Automatic
Cooling SystemAir
SightsFront Post & Rear Tangent
Feed250 Round Belt
Practical Rate of Fire[@practical_rate_of_fire]
Maximum Rate of Fire700 r.p.m.
Blank Cartridge[@blank_cartridge]
Muzzle Velocity800 m/s
Fuel Capacity[@fuel_capacity]
Minimum Range[@minimum_range]
Effective Range2.700m
Maximum Range5000m
Armour Penetration[@armour_penetration]
Bayonet[@bayonet]
Traction[@traction]
Variants[@variants]
NotesThe SG-43 (Goryunov) was developed to replace the aging M.1910 as the standard medium machine gun. The M.1910/30 was cooled by a water jacket which was cumbersome and heavy, so the new weapon had to air cooled. The SG-43 was belt fed and very reliable, and could fire for long periods before requiring a barrel change. It was mounted on a wheeled carriage and had a gun shield. Despite being a modern design it was never built in enough numbers to replace the M.1910/30.
