T-20 KOMSOMOLEYTS

T-20 KOMSOMOLEYTS

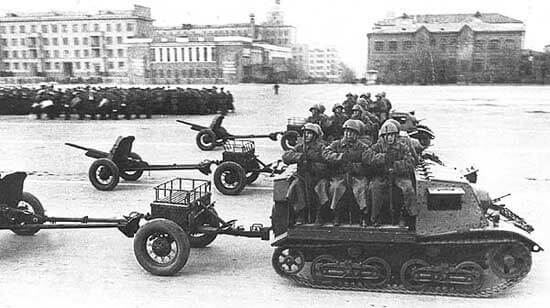

Image: T-20 Komsomoleyts (Red Army Photo)
Year1937
Vehicle TypeLight Artillery Tractor
Origin & Designer[@designer]
Numbers Produced7.780
Crew2 + 6 Gun Crew
Armament1 x 7.62mm DT Machine Gun (Ball Mount)
Ammunition Carried1.008 x 7.62mm
Pay Load[@pay_load]
Towed Load500 kg
Weight3.460 kg
Height2.74m
Width2.35m
Length6.22m
Ground Clearance0.30m
Fording Depth0.60m
Obstacle Clearance0.47m
Climbing Ability30°
Radio[@radio]
ArmourHull Front: 10mm
Hull Sides: 7mm
Hull Rear: 7mm
Hull Top: 7mm
Hull Bottom: 7mm
EngineGAZ-M (Petrol)
Transmission4 Forward & 1 Reverse
Maximum Road Range200 km
Maximum Cross Country Range150 km
Maximum Road Speed48 kph
Maximum Road Speed + Trailer[@maximum_road_speed_trailer]
Maximum Cross Country Speed12 kph
Maximum Road Towing Speed[@maximum_road_towing_speed]
Variants[@variants]
NotesDesigned to tow the 45mm Anti-Tank Gun, Regimental Gun and 120mm Mortar.
